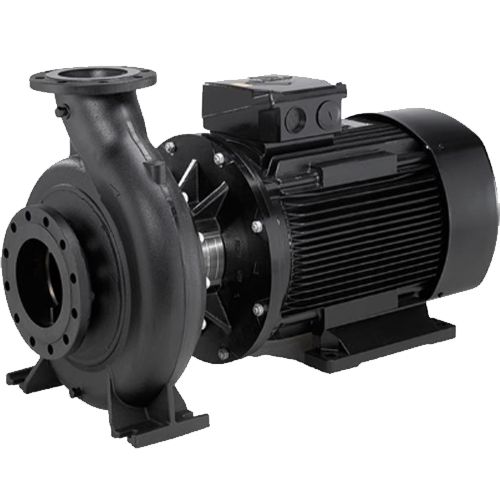

Grundfos NB 150-250/235 A F A E BQQE Single Stage End Suction Bloc Pump with 6 Pole and 960rpm Motor 415V 3Ph 50Hz, 5.5kW Motor
Single-stage end suction bloc pump:
- Non-self-priming, single-stage, centrifugal volute pump designed according to ISO 5199 with dimensions and rated performance according to EN 733 (10 bar).
- Flanges are PN 16 with dimensions according to EN 1092-2.
- The pump has an axial suction port, radial discharge port, horizontal shaft and a back pull-out design enabling removal of the motor, motor stool, cover and impeller without disturbing the pump housing or pipework.
- The unbalanced rubber bellows seal is according to DIN EN 12756.
- The pump is close-coupled to a fan-cooled asynchronous motor.
- For pumping thin, clean or lightly contaminated liquids without abrasive or long-fibred solids.
- Suitable for water supply, industrial pressure boosting, industrial liquid transfer, HVAC and irrigation.
- 150mm outlet and 200mm inlet.
- A flange kit comprising of two sets of flanges is required, see related accessories for options.
| SKU | 98975688 |
|---|---|
| Manufacturer | Grundfos |
| Manufacturers Warranty | 2 Years |
| GTIN | 5712604547403 |
| Weight | 253.0 Kg |
| Dimensions | 936mm (w) x 635mm (h) x 547mm (d) |
| Inlet Dimension | 200mm Flanged |
| Discharge Dimension | 150mm Flanged |
| Motor Size (kW/W) | 5.5 kW |
| Full Load Current (FLC) | 7.00-6.40 A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 970rpm |
| Max Flow | 289m3/hr |
| Max Head | 7m |
| Max Temperature | 120°C |
| Material | Cast Iron |
| Impeller Material | Cast Iron |
