NB 40-125/127 A F A E BQQE Single Stage End Suction 2900RPM 3kW Pump 415V

SKU
98701179
MRRP £2,698.00 + VAT Our price £1,889.00 (+ VAT) Incl. VAT: £2266.80

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
02
Hours
59
Mins
22
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

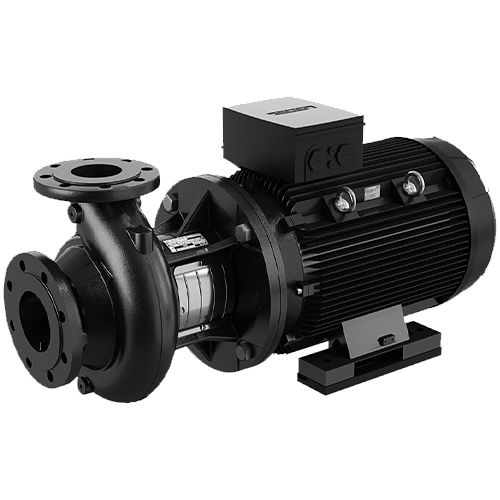

Grundfos NB 40-125/127 A F A E BQQE Single Stage End Suction Bloc Pump with 2 Pole and 2900rpm Motor 415V 3Ph 50Hz, 3kW Motor

Single-stage end suction bloc pump:

  • Non-self-priming, single-stage, centrifugal volute pump designed according to ISO 5199 with dimensions and rated performance according to EN 733 (10 bar).
  • Flanges are PN 16 with dimensions according to EN 1092-2.
  • The pump has an axial suction port, radial discharge port, horizontal shaft and a back pull-out design enabling removal of the motor, motor stool, cover and impeller without disturbing the pump housing or pipework.
  • The unbalanced rubber bellows seal is according to DIN EN 12756.
  • The pump is close-coupled to a fan-cooled asynchronous motor.
  • For pumping thin, clean or lightly contaminated liquids without abrasive or long-fibred solids.
  • Suitable for water supply, industrial pressure boosting, industrial liquid transfer, HVAC and irrigation.
  • 40mm outlet and 65mm inlet.
  • A flange kit comprising of two sets of flanges is required, see related accessories for options.
More Information
SKU 98701179
Manufacturer Grundfos
Manufacturers Warranty 2 Years
GTIN 5712600140356
Weight 65.0 Kg
Dimensions 689mm (w) x 252mm (h) x 235mm (d)
Inlet Dimension 65mm Flanged
Discharge Dimension 40mm Flanged
Motor Size (kW/W) 3 kW
Full Load Current (FLC) 6.30 A
Voltage 415V 3Ph 50Hz
RPM 2900rpm
Max Flow 54m3/hr
Max Head 22m
Max Temperature 120°C
Material Cast Iron
Impeller Material Cast Iron
