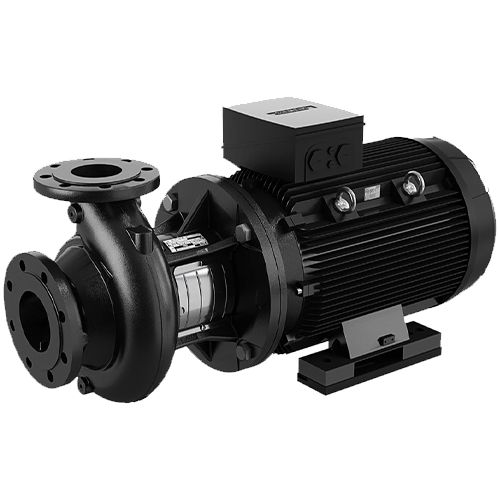

Grundfos NB 40-250/245 A F A E BQQE Single Stage End Suction Bloc Pump with 2 Pole and 2900rpm Motor 415V 3Ph 50Hz, 18.5kW Motor
Single-stage end suction bloc pump:
- Non-self-priming, single-stage, centrifugal volute pump designed according to ISO 5199 with dimensions and rated performance according to EN 733 (10 bar).
- Flanges are PN 16 with dimensions according to EN 1092-2.
- The pump has an axial suction port, radial discharge port, horizontal shaft and a back pull-out design enabling removal of the motor, motor stool, cover and impeller without disturbing the pump housing or pipework.
- The unbalanced rubber bellows seal is according to DIN EN 12756.
- The pump is close-coupled to a fan-cooled asynchronous motor.
- For pumping thin, clean or lightly contaminated liquids without abrasive or long-fibred solids.
- Suitable for water supply, industrial pressure boosting, industrial liquid transfer, HVAC and irrigation.
- 40mm outlet and 65mm inlet.
- A flange kit comprising of two sets of flanges is required, see related accessories for options.
| SKU | 98979905 |
|---|---|
| Manufacturer | Grundfos |
| Manufacturers Warranty | 2 Years |
| GTIN | 5712604620823 |
| Weight | 203.0 Kg |
| Dimensions | 969mm (w) x 385mm (h) x 336mm (d) |
| Inlet Dimension | 65mm Flanged |
| Discharge Dimension | 40mm Flanged |
| Motor Size (kW/W) | 18.5 kW |
| Full Load Current (FLC) | 20,0-18,8 A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2940rpm |

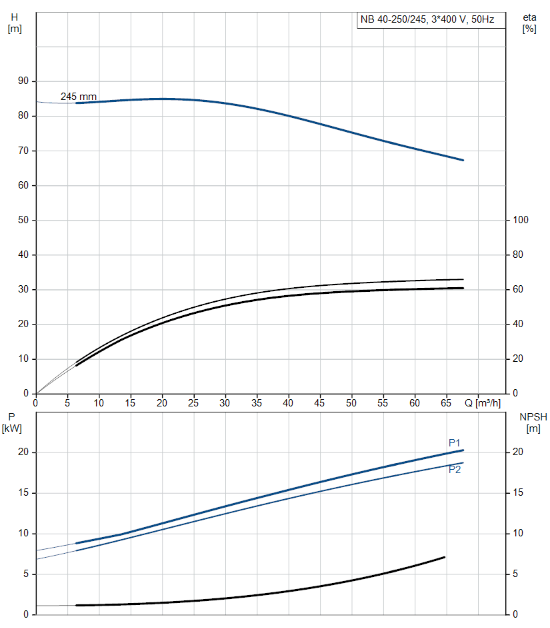

| Max Flow | 68m3/hr |
| Max Head | 84m |
| Max Temperature | 120°C |
| Material | Cast Iron |
| Impeller Material | Cast Iron |
