NBE 32-200/197 A F A E BQQE Single Stage Variable Speed End Suction 1450RPM 0.75kW Pump 415V
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

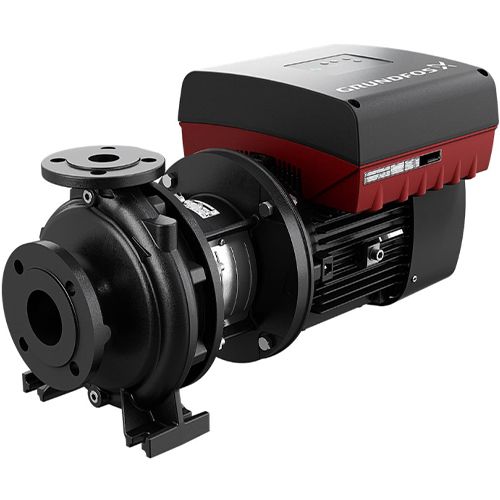

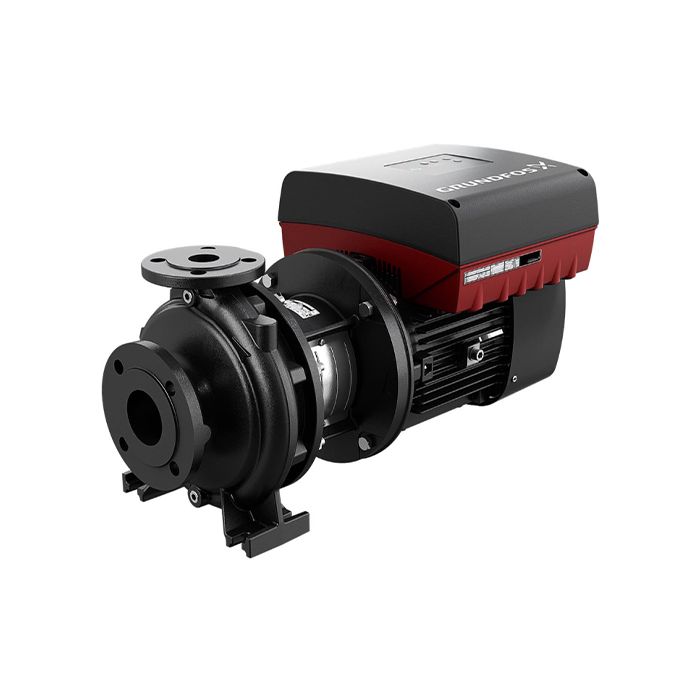

Grundfos NBE 32-200/197 A F A E BQQE Single Stage Variable Speed End Suction Bloc Pump with 4 Pole and 1450rpm Motor 415V 3Ph 50Hz, 0.75kW Motor
Single-stage end suction bloc pump:
- Non-self-priming, single-stage, centrifugal volute pump designed according to ISO 5199 with dimensions and rated performance according to EN 733 (10 bar).
- Flanges are PN 16 with dimensions according to EN 1092-2.
- The pump has an axial suction port, radial discharge port, horizontal shaft and a back pull-out design enabling removal of the motor, motor stool, cover and impeller without disturbing the pump housing or pipework.
- The unbalanced rubber bellows seal is according to DIN EN 12756.
- The pump is close-coupled to a fan-cooled, permanent-magnet asynchronous motor.
- For pumping thin, clean or lightly contaminated liquids without abrasive or long-fibred solids.
- The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement.
- Suitable for water supply, industrial pressure boosting, industrial liquid transfer, HVAC and irrigation.
- 32mm outlet and 50mm inlet.
- A flange kit comprising of two sets of flanges is required, see related accessories for options.
| SKU | 99104652 |
|---|---|
| Manufacturer | Grundfos |
| Manufacturers Warranty | 2 Years |
| GTIN | 5712606839520 |
| Weight | 55.0 Kg |
| Dimensions | 600mm (w) x 318mm (h) x 268mm (d) |
| Inlet Dimension | 50mm Flanged |
| Discharge Dimension | 32mm Flanged |
| Motor Size (kW/W) | 0.75 kW |
| Full Load Current (FLC) | 1.50 A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 1450rpm |
| Max Flow | 16m3/hr |
| Max Head | 15m |
| Max Temperature | 120°C |
| Material | Cast Iron |
| Impeller Material | Cast Iron |
