NBE 65-200/219 A F A E BQQE Single Stage Variable Speed End Suction 1450RPM 4kW Pump 415V

SKU
99101750
MRRP £6,243.00 + VAT Our price £4,371.00 (+ VAT) Incl. VAT: £5245.20

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

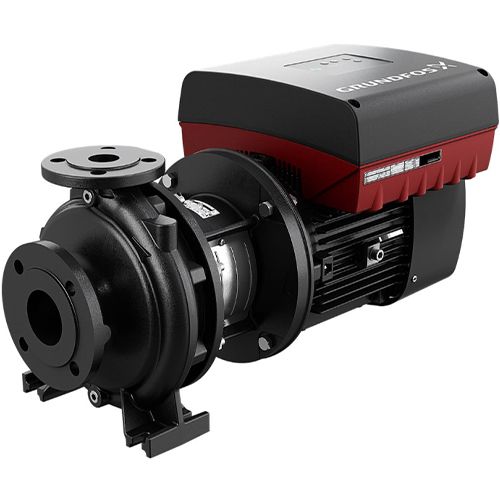

Grundfos NBE 65-200/219 A F A E BQQE Single Stage Variable Speed End Suction Bloc Pump with 4 Pole and 1450rpm Motor 415V 3Ph 50Hz, 4kW Motor

Single-stage end suction bloc pump:

  • Non-self-priming, single-stage, centrifugal volute pump designed according to ISO 5199 with dimensions and rated performance according to EN 733 (10 bar).
  • Flanges are PN 16 with dimensions according to EN 1092-2.
  • The pump has an axial suction port, radial discharge port, horizontal shaft and a back pull-out design enabling removal of the motor, motor stool, cover and impeller without disturbing the pump housing or pipework.
  • The unbalanced rubber bellows seal is according to DIN EN 12756.
  • The pump is close-coupled to a fan-cooled, permanent-magnet asynchronous motor.
  • For pumping thin, clean or lightly contaminated liquids without abrasive or long-fibred solids.
  • The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement.
  • Suitable for water supply, industrial pressure boosting, industrial liquid transfer, HVAC and irrigation.
  • 65mm outlet and 80mm inlet.
  • A flange kit comprising of two sets of flanges is required, see related accessories for options.
More Information
SKU 99101750
Manufacturer Grundfos
Manufacturers Warranty 2 Years
GTIN 5712606787890
Weight 92.0 Kg

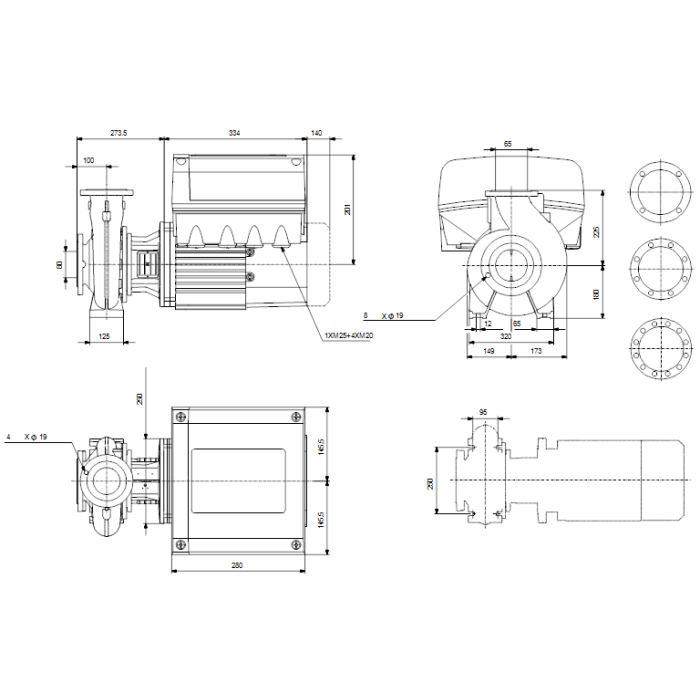

Dimensions 748mm (w) x 381mm (h) x 292mm (d)
Inlet Dimension 80mm Flanged
Discharge Dimension 65mm Flanged
Motor Size (kW/W) 4 kW
Full Load Current (FLC) 6.00 A
Voltage 415V 3Ph 50Hz
RPM 1450rpm
Max Flow 84m3/hr
Max Head 20m
Max Temperature 120°C
Material Cast Iron
Impeller Material Cast Iron
