Pentax CM 65-200C 15kW End Suction Centrifugal Pump 415v

SKU
576-4KKK
MRRP £2,825.00 + VAT Our price £2,260.00 (+ VAT) Incl. VAT: £2,712.00

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

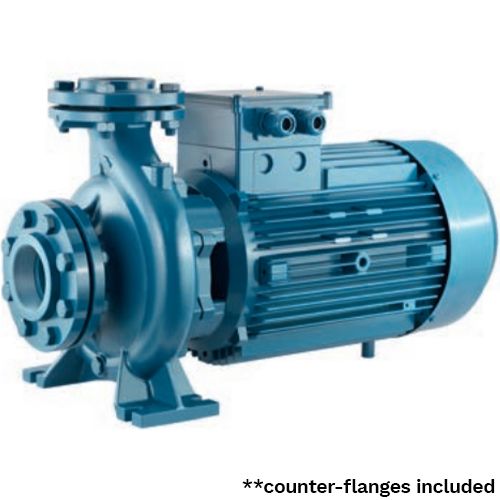

Pentax CM 65-200C 15kW End Suction Centrifugal Pump 415v - 576-4KKK

Pentax CM Pumps are made up of single stage electric monobloc pumps with a flanged hydraulic motor connection. The pump casing is manufactured in accordance with the provisions of DIN 24255-NF E 44 III-UNI 7476 standards, regarding hydraulic dimensions and connections points. The pumps may be installed in all positions, except where the suction point is directed downwards. The design of these pumps allows the rotating parts and the motor to be removed from the pump casing without having to disconnect the pipes. Thus any maintanance is easily and quickly performed.

Cast iron pump casing, motor bracket and impeller. Stainless steel shaft. Mechanical seal with ceramic/graphite counterfaces. Flanged connection points DN65 & DN80 2236 PN10 standards. Thread type counter flanges UN12254.

Clean water pumping only, non aggresive, non explosive and free from abrasives and fibres. Liquid temperature from -10°C to 90°C. Enviromental temperature up to 40°C max.

Applications:

  • irrigation supply
  • heating and air conditioning systems
  • water supply
  • liquid transfer
  • fire fighting systems

**Counter flanges are included with this pump**

More Information
SKU 576-4KKK
Manufacturer Pentax
Manufacturers Warranty 1 Year
Weight 139.0 Kg

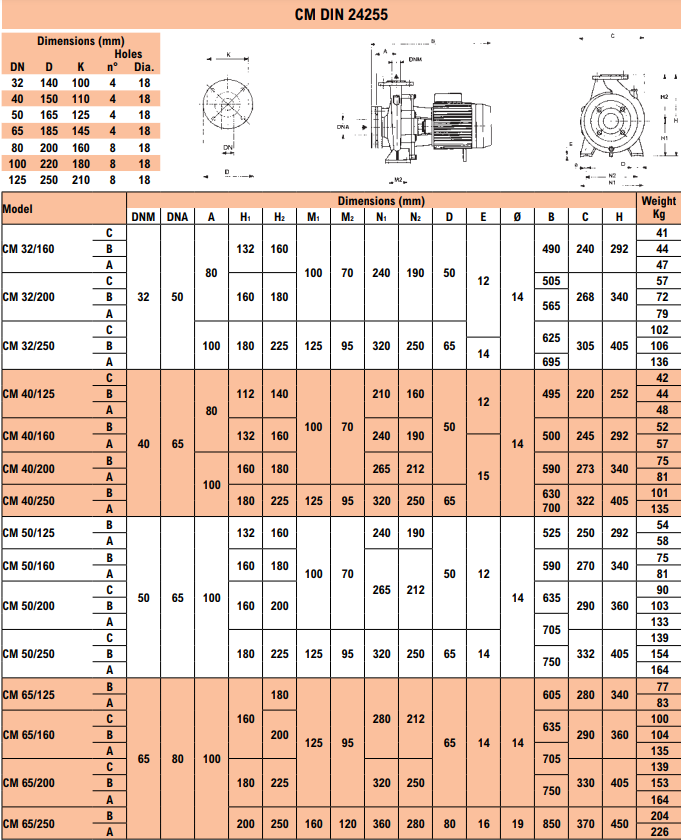

Dimensions 405mm (h) x 705mm (w) x 330mm (d)
Inlet Dimension 80mm 3" BSP Female
Discharge Dimension 65mm 2 1/2" BSP Female
Motor Size (kW/W) 15kW
Full Load Current (FLC) 28.3A
Voltage 415V 3Ph 50Hz
RPM 2900rpm

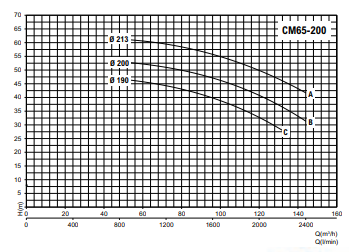

Max Flow 130m3/hr
Max Head 46m
Max Temperature 90°C
Material Cast Iron
Seal Type Ceramic-Graphite-NBR
