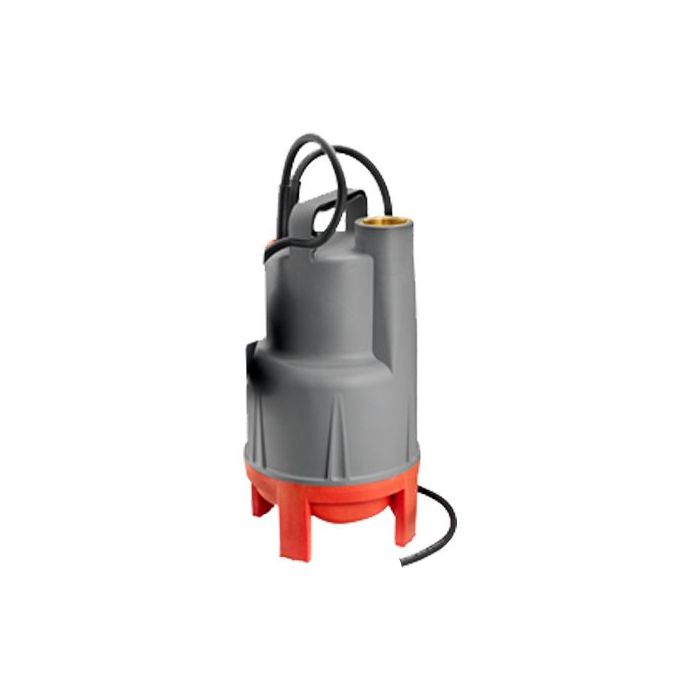

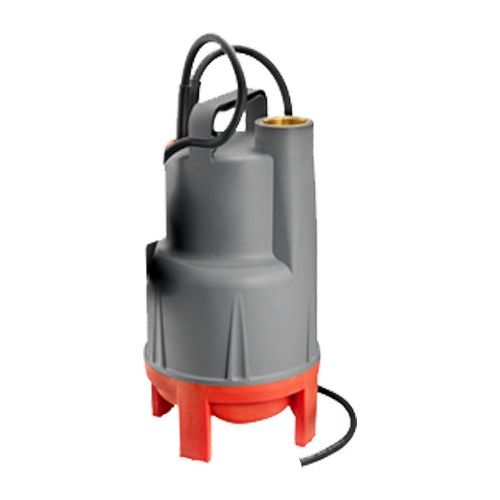

Pentax DPV100 11/4" Manual Vortex Submersible Drainage Pump 240v

SKU
P620130000Z
MRRP £187.00 + VAT Our price £141.00 (+ VAT) Incl. VAT: £169.20

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Drainage pump for emptying pits and cisterns, for gardening; completely constructed in anticorrosive material. Brass insert on the delivery opening (DP 80/100 - DPV 80/100). The single-phase version includes a built-in capacitor, a thermal protector and it can be equipped with a float switch.

Max solids passage = 15mm

More Information
SKU P620130000Z
Manufacturer Pentax
Manufacturers Warranty 1 Year
Weight 10.0 Kg
Dimensions 331mm x 176mm
Connection Type 1 1/4 Inch BSP Female
Motor Size (kW/W) 750W
Full Load Current (FLC) 3.8 A
Voltage 240V 1Ph 50Hz
Cable Length 10 Mtrs

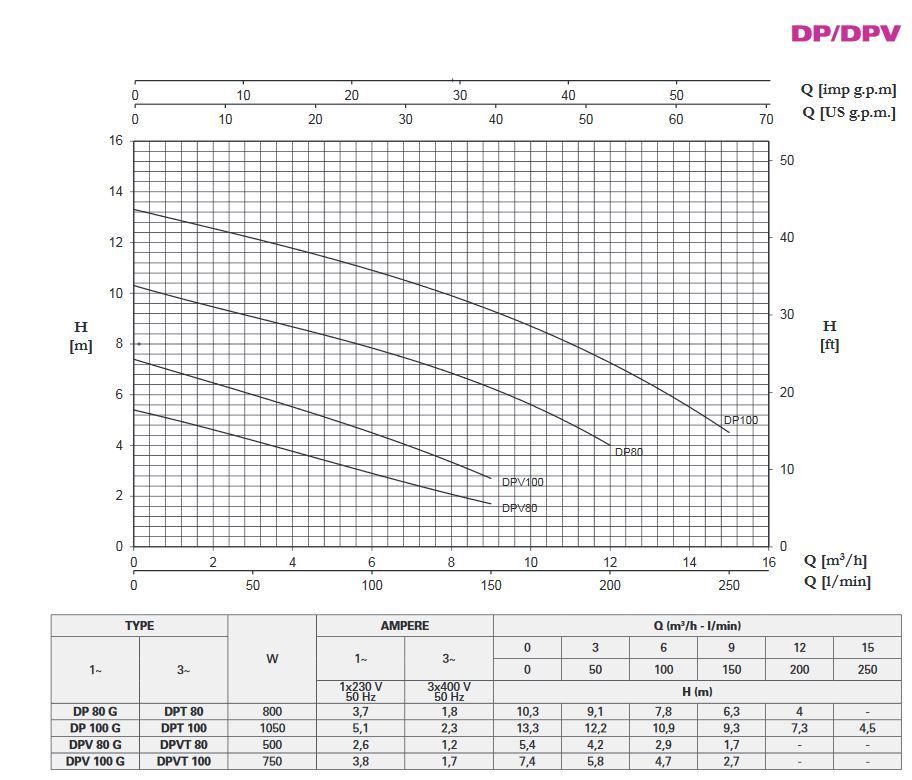

Max Flow 150 l/min
Max Head 7.4 Mtrs
Max Temperature 40 DegC
Material Polypropylene
Seal Type Double Lip Seal
Impeller Material Noryl
