ProMinent Gamma X Solenoid Pump 2.2l/hr
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
ProMinent Gamma X Solenoid Pump 2.2l/hr - GMXA1602PVT20000UEC0300BEN
ProMinent Gamma X Solenoid Pump 2.2/hr output at upto 16bar back pressure, PVDF/PTFE chemicaly resistant liquid end. Inlcudes fault indicating alarm relay, manual bleed screw & pulse/analogue control.

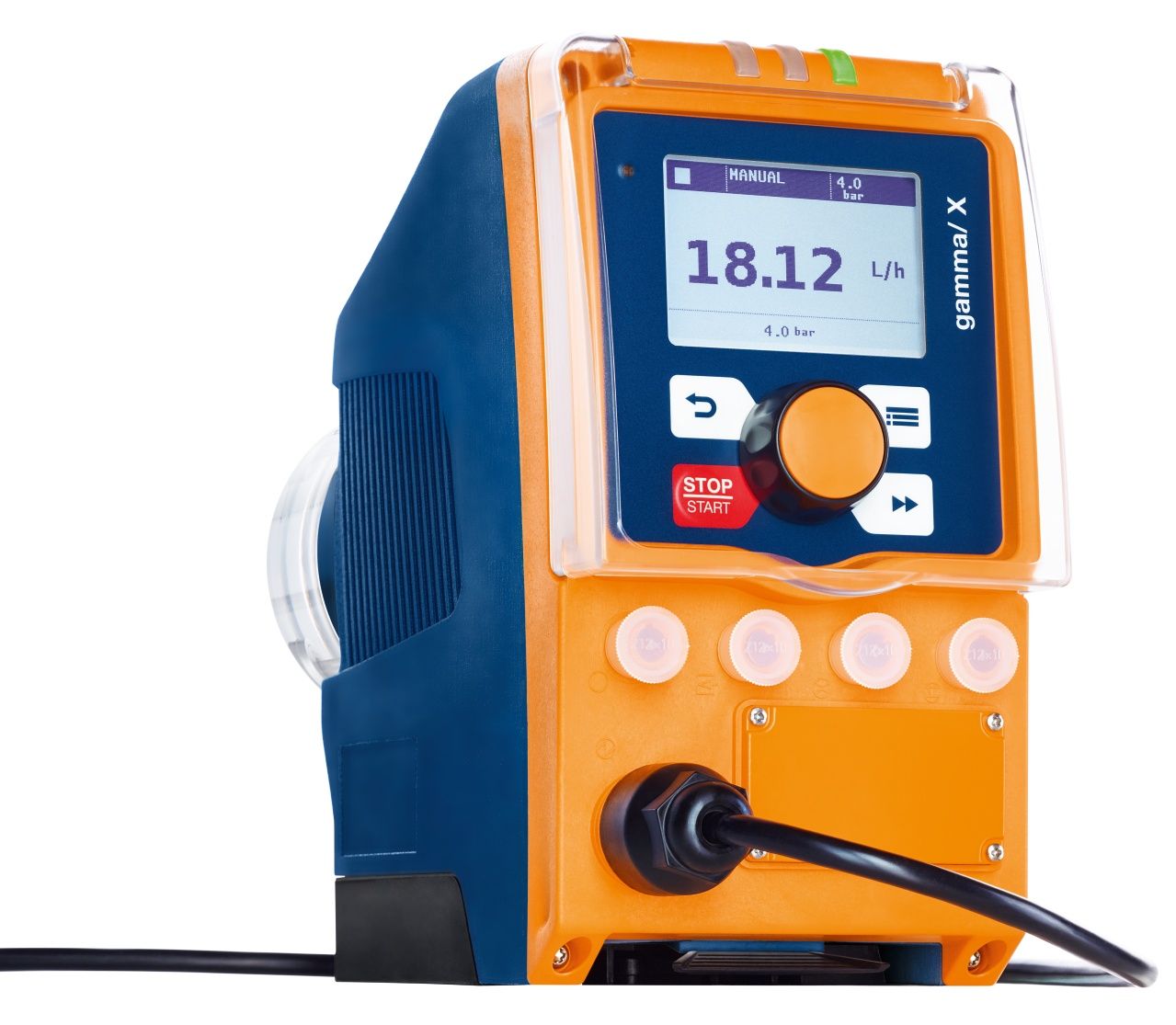

The new solenoid diaphragm metering pump gamma/ X is user-friendly and has an outstandingly long service life, just like its predecessor. An ingenious solenoid control measures the back pressure and protects the system from overload.This technology makes a pressure sensor superfluous, meaning that operating safety can be significantly increased: no additional parts come into contact with the feed chemical, there are no additional sealing surfaces and no electronic components come into contact with the feed chemical.Whether the metering volume fluctuates or hydraulic failures affect the metering process – the gamma/ X keeps everything at your fingertips.
- Virtually wear-free solenoid drive, overloadproof and economical
- Suitable for continuous micro-metering from 1 ml/h thanks to the regulated solenoid drive
- Simple adjustment of the capacity directly in l/h
- Direct input of the desired final concentration for volume-proportional metering tasks
- Trouble-free processes by the detection of hydraulic malfunctions or blocked discharge lines
- Integrated pressure measurement and display for greater safety during commissioning and in the process
- Adaptation to existing signal transducers by external control via potential-free contacts with pulse step-up and step-down
- External control via 0/4-20 mA standard signal with adjustable assignment of signal value to stroke rate
- Guaranteed metering by means of automatic bleeding
- Supplied with bluetooth connectivity as standard
| SKU | GMXA1602PVT20000UEC0300BEN |
|---|---|
| Manufacturer | ProMinent |
| Manufacturers Warranty | 2 Years |
| Weight | 3.7 Kg |

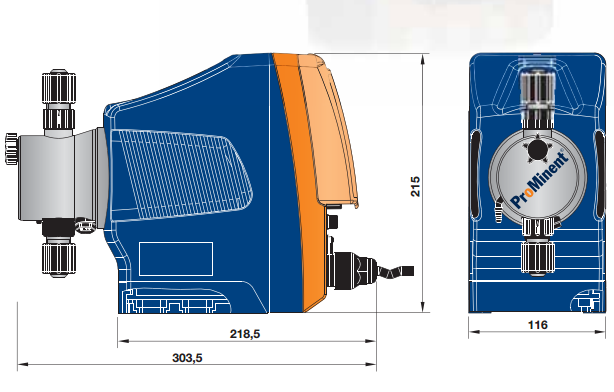

| Dimensions | 116mm x 215mm x 293mm |
| Connection Type | 6mm OD x 4mm ID |
| Motor Size (kW/W) | Solenoid |
| Full Load Current (FLC) | 1.3 - 3.5A |
| Cable Length | 2mtr |
| Max Flow | 2.2l/hr |
| Max Head | 16bar |
| Material | Kynar (PVDF) |
| Seal Type | PTFE |
