ProMinent Gamma XL Solenoid Pump 11.3l/hr
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

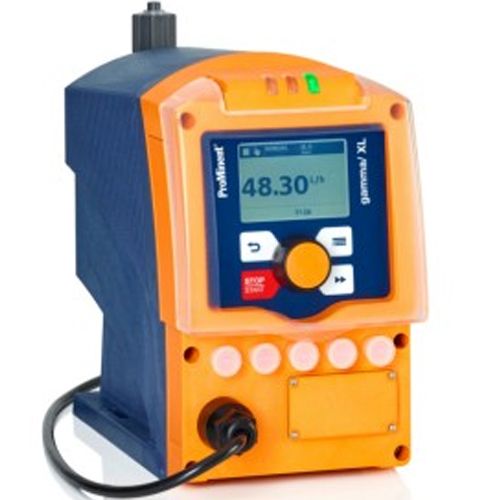

ProMinent Gamma XL Solenoid Pump 11.3l/hr - GXLA1612PVT20000UEC0300BEN
The new solenoid-driven metering pump gamma/ XL extends the capacity range of the proven gamma/ X to 80 l/h. In addition to the familiar relays and bus interfaces, the gamma/ XL provides a socket with 3 more configurable inputs and outputs. This allows the gamma/ XL to network with all common systems, devices and platforms. Like the gamma/ X, the gamma/ XL has an intuitive operating concept. The pump is adjusted using a click wheel and 4 additional operating keys. Pressure detection without wetted parts ensures maximum operational safety. Hydraulic error statuses, like “Gas in the dosing head”, “Overpressure” and “No pressure” can be detected.
Pressure fluctuations in the system are detected and compensated for, achieving a high level of dosing precision and reducing chemical consumption to the required level.
The last 300 events are retrospectively saved in the integral logbook, which permits rapid analysis of the cause and troubleshooting if required.
Deviations from the metering volume or hydraulic fault statuses are immediately detected and corrected by the gamma/ XL. The pump’s operating menu includes ordering information for the wear parts required.
Designed as a smart product, it can also be connected to our web-based IIoT platform. The user can use this to monitor his metering process in real-time, avoid downtimes and generate reports fully automatically.
| SKU | GXLA1612PVT20000UEC0300BEN |
|---|---|
| Manufacturer | ProMinent |
| Manufacturers Warranty | 2 Years |
| Weight | 10.0 Kg |

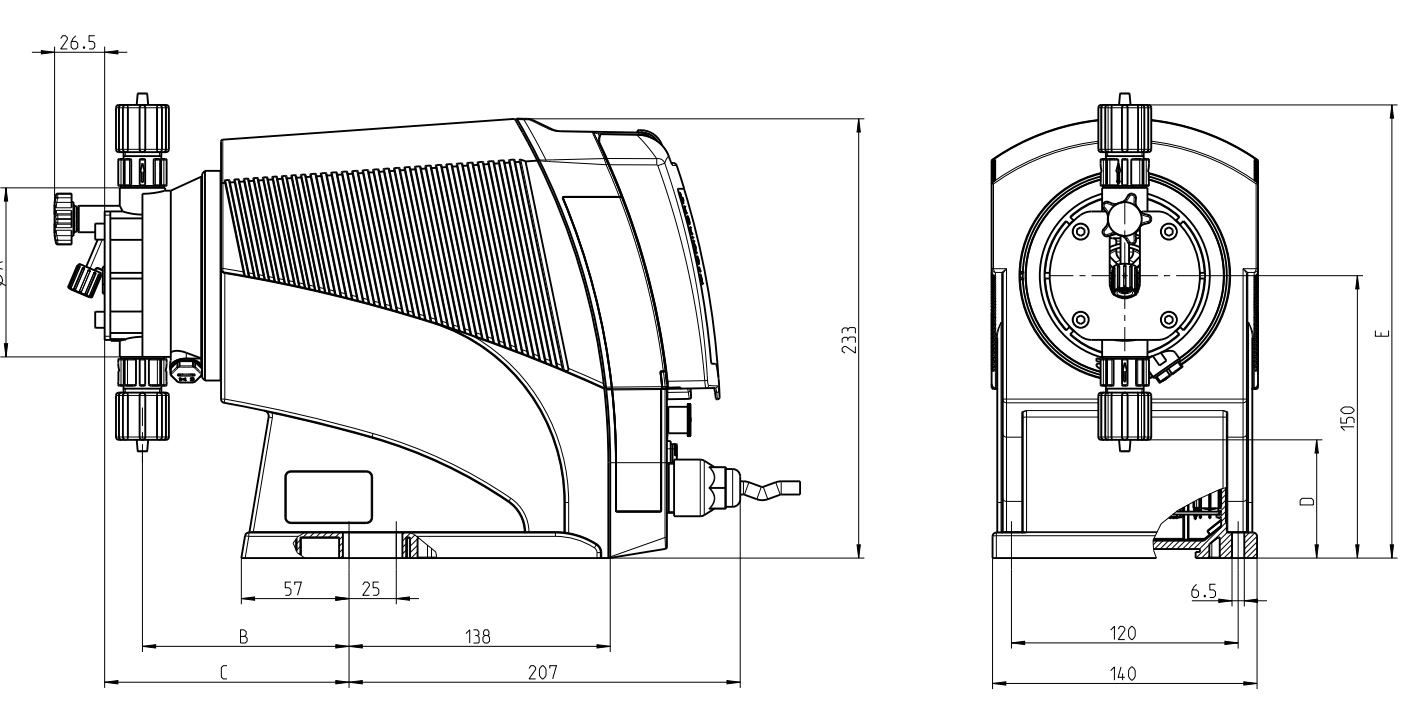

| Dimensions | 281mm (h) x 140mm (w) x 207mm (d) |
| Motor Size (kW/W) | Solenoid |
| Max Flow | 12 l/hr |
| Max Pressure | 16 Bar |
| Material | PVDF |
| Seal Type | PTFE |
