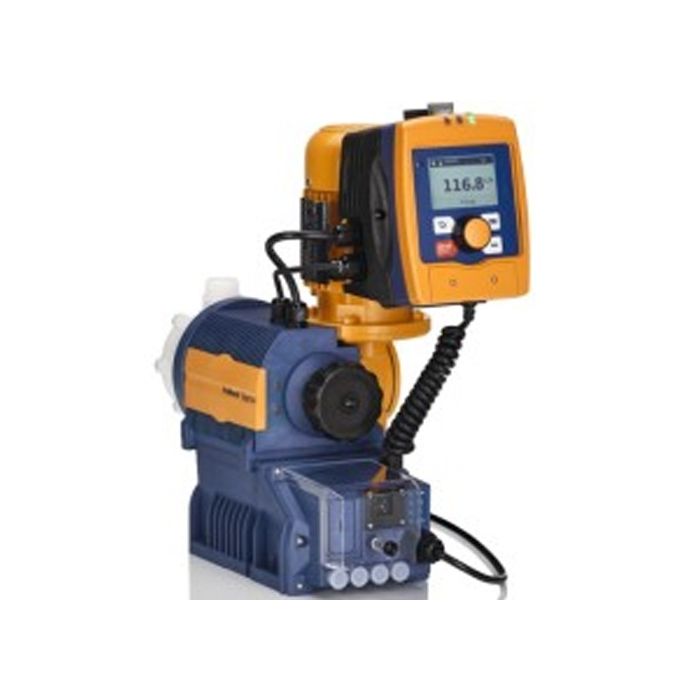

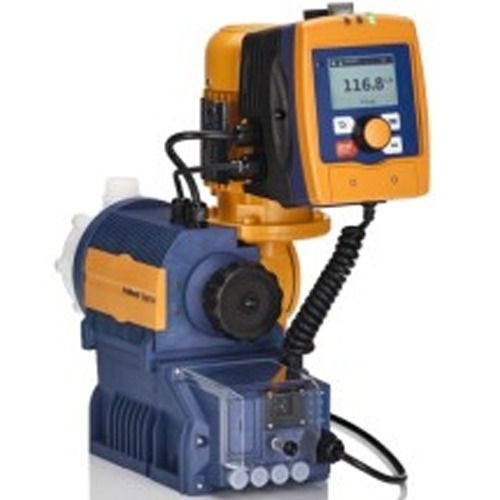

ProMinent Sigma1 Motor Driven Pump 117l/hr
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
The new Sigma X range – reliable, smart and connectible
The Sigma X diaphragm metering pump covers a capacity range of 21 to 1,040 l/h in versions S1Cb, S2Cb and S3Cb. Its patented multi-layer safety diaphragm guarantees maximum process reliability. Efficient protection of the power end from overloading by means of an integral frequency converter with microprocessor control(ler).
One highlight is the standardised operating concept with click wheel and 4 additional operating keys on a removable operating unit. A large illuminated LCD and a 3-LED display for operating, warning and error messages, visible from all sides, offers additional operating convenience.
The Sigma, like all smart ProMinent metering pumps, can be flexibly connected to various bus systems.
It has a large adjustment range thanks to a combination of frequency and stroke length adjustment. The pump works with high precision across the entire frequency range. Accurate and complication-free metering of viscous and gaseous media by adjustment of the movement profile.
Operating statuses are simply remotely transmitted via an additional output or relay module. A built-in timer, included as standard, controls time-dependent metering cycles.
| SKU | S1CB04120PVTS000U181000EN |
|---|---|
| Manufacturer | ProMinent |
| Manufacturers Warranty | 2 Years |
| Weight | 17.2 Kg |
| Dimensions | 165mm x 446mm x 451mm |
| Motor Size (kW/W) | 0.09kW |
| Full Load Current (FLC) | 2.6a |
| Voltage | 415V 3Ph 50Hz |
| Cable Length | 2mtr |
| Max Flow | 117l/hr |
| Max Head | 4 bar |
| Material | Kynar (PVDF) |
| Seal Type | PTFE |
