Saniflo Sanicubic 1 Heavy Duty Macerator for 2 Toilets and Multiple Grey Water Appliances 240V (6101)

SKU
1102/1
MRRP £1,400.00 + VAT Our price £868.00 (+ VAT) Incl. VAT: £1,041.60

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

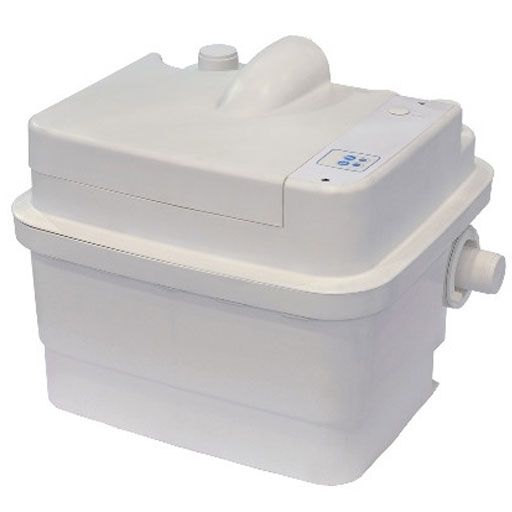

Saniflo Sanicubic 1 Heavy Duty Macerator for 2 Toilets and Multiple Grey Water Appliances 240V - 1102/1

This model is no longer manufactured and is replaced with the Sanicubic 1' - Product code 6101. This will be sent as a direct replacement



The Sanicubic 1 is a robust macerator pump that has been designed for the discharge of waste from up to two WCs plus multiple grey water producing appliances in busy business environments and larger domestic situations.

  • Ideal for busy business environments and larger domestic situations
  • Tough, reliable macerator pump
  • External hard wired audio visual alarm with 5m cable
  • Features integrated non-return valves
  • Working temperature of 35°C, will handle up to 70°C for short periods
  • IP67 rated
  • Cannot be connected to a Building Management System

Please note, isolation valves must be fitted to inlet and discharge pipework for maintenance purposes.



The Sanicubic tank is fitted with 2 dip tubes; one tube controls motor operation and the other controls the alarm system:

  • Long pickup tube (normal operation): as soon as the waste water level in the tank reaches the triggering point in the long tube, the pumping system starts up
  • Short pickup tube (inflow overload operation): if the waste water level in the tank reaches the upper point, a contactis closed and the auxiliary pumping system is triggered. The contact also sets off an audible and visual alarm



IP or “Ingress Protection” ratings specify the environmental protection that the product casing provides and are defined by international standards. They are used to explain levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies e.g. dust, dirt and moisture.  Sanicubic  has rating IP67 which gives protection against temporary immersion in water.

More Information
SKU 1102/1
Manufacturer Saniflo
Manufacturers Warranty 2 Years
Weight 16.0 Kg
Dimensions 460mm High x 426mm Wide x 459mm Deep
Motor Size (kW/W) 1500W per motor
Full Load Current (FLC) 6.0A
Voltage 240V 1Ph 50Hz
Max Flow 200 l/min
Max Head 11m
Material Plastic
