Star Delta 1/15 Single Pump Control Panel 415v

Name: Star Delta 1/15 Single Pump Control Panel 415v
Brand: JS
SKU: 021-134
Price: 1080 GBP
Availability: InStock

SKU

021-134

MRRP £1,199.00 + VAT Our price £1,080.00 (+ VAT) Incl. VAT: £1,296.00

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Star Delta 1/15 Single Pump Control Panel 415v - 021-134

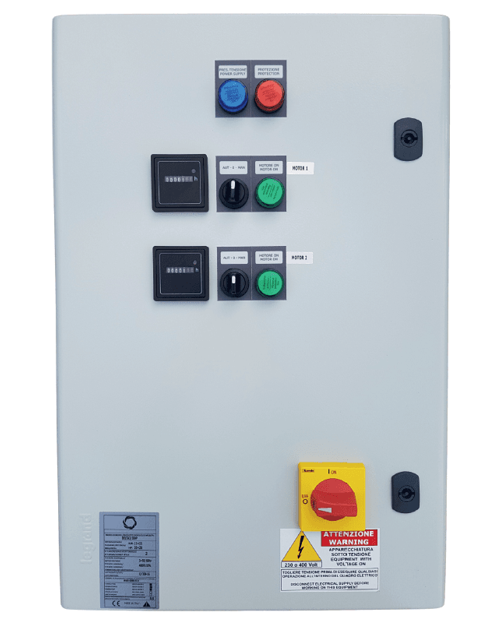

IP54 steel enclosure with interlock main isolater. Line fuses and overload relays. Transformer for low voltage circuit, auto changeover relay (twin pump) run and trip indicators and hour counter, auto off manual switch. Alarm circuit 24v AC. Single pump panels require a two float operation (three if using the alarm feature). Twin pump panels require a three float operation (four if using the alarm feature).

Features:

star delta
single or twin pump control
optional alarm features

Applications:

pump stations

More Information
SKU	021-134
Manufacturer	JS
Manufacturers Warranty	1 Year
Weight	6.0 Kg
Dimensions	420mm (h) x 320mm (w) x 170mm (l)
Motor Size (kW/W)	11kW
Full Load Current (FLC)	11A - 16A
Voltage	415V 3Ph 50Hz
