Star Delta 2/20 Twin Pump Control Panel 415v

Name: Star Delta 2/20 Twin Pump Control Panel 415v
Brand: JS
SKU: 021-145
Price: 1857 GBP
Availability: InStock

SKU

021-145

MRRP £2,063.00 + VAT Our price £1,857.00 (+ VAT) Incl. VAT: £2228.40

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

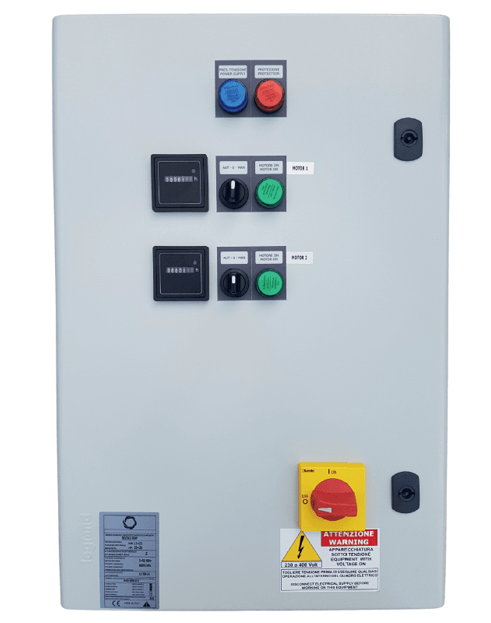

Star Delta 2/20 Twin Pump Control Panel 415v - 021-145

IP54 steel enclosure with interlock main isolater. Line fuses and overload relays. Transformer for low voltage circuit, auto changeover relay (twin pump) run and trip indicators and hour counter, auto off manual switch. Alarm circuit 24v AC. Single pump panels require a two float operation (three if using the alarm feature). Twin pump panels require a three float operation (four if using the alarm feature).

Features:

star delta
single or twin pump control
optional alarm features

Applications:

pump stations

More Information
SKU	021-145
Manufacturer	JS
Manufacturers Warranty	1 Year
Weight	32.0 Kg
Dimensions	690mm (h) x 500mm (w) x 230mm (l)
Motor Size (kW/W)	15kW
Full Load Current (FLC)	14A - 20A
Voltage	415V 3Ph 50Hz
