Stuart Turner Aquaboost CH 4-60 Centrifugal Pressure Set 240Volt (F120-60)
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

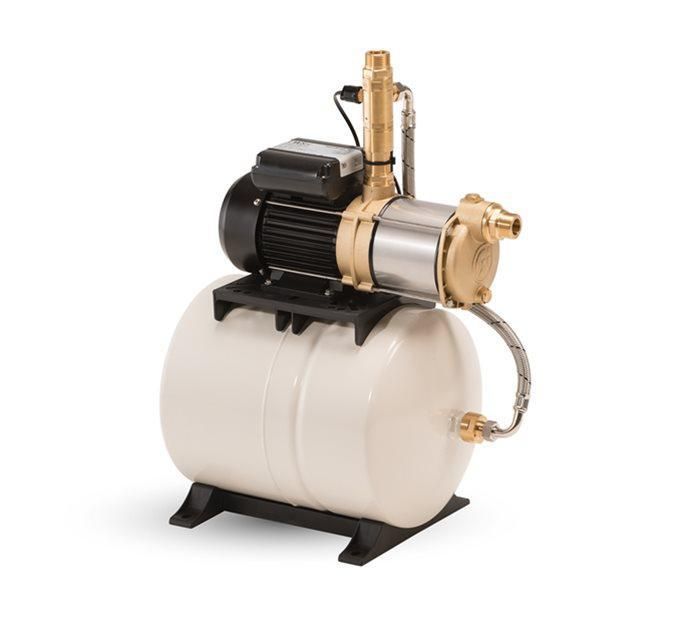

Centrifugal Pressure Set
Designed to meet system demands in larger domestic and light commercial applications. The CH multistage pump is mounted on to a WRAS Approved 24 litre diaphragm tank providing a buffer of pressurised stored water. CH Pressure sets are ideally suited to boosting stored cold water supplies to un-vented hot water cylinders/combination boilers. Supplied with G 1 flexible hoses and adaptors.
Key Features

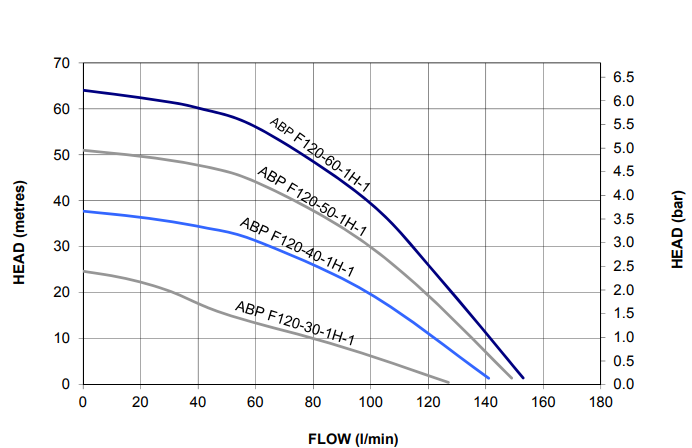

- Flow rates up to 153 litres per minute and heads up to 64 metres
- Fully automatic control
- No pulsing during operation
- Durable brass and stainless steel construction
- Multistage centrifugal pump
- Extended life mechanical seal
- Quiet operation
- WRAS Approved Product
- Continuously rated induction motor
- Dry run protection
- Includes 24 litre WRAS Approved diaphragm tank
- G 1 Flexible hoses included
- 2 year guarantee
| SKU | 44624 |
|---|---|
| Manufacturer | Stuart Turner |
| Manufacturers Warranty | 2 Years |
| GTIN | 5050400446248 |
| Weight | 18.5 Kg |

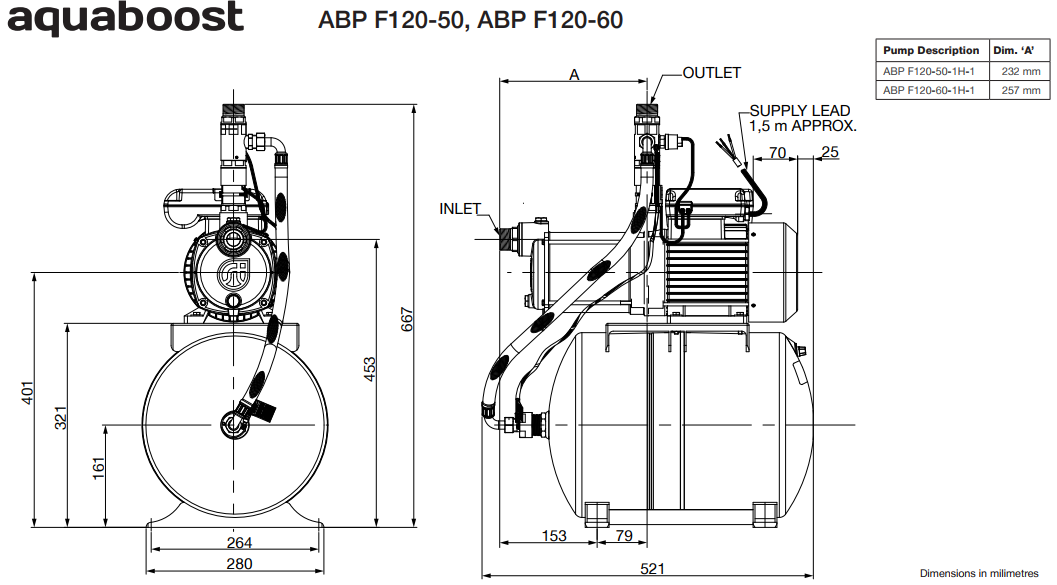

| Dimensions | 667mm High x 521mm Deep x 280mm Wide |
| Connection Type | 1 Inch BSP |
| Motor Size (kW/W) | 1.97 kW |
| Full Load Current (FLC) | 8.7A |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 153 l/min |
| Max Head | 62m (6.2 bar) |
| Max Pressure | 6.2 Bar |
| Material | Stainless Steel |
| Seal Type | EPDM / Carbon / Ceramic |
| Impeller Material | Stainless Steel |
