Stuart Turner Aquaboost IBolt 0903 2H-CMT/24 Horizontal Twin Booster Set
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

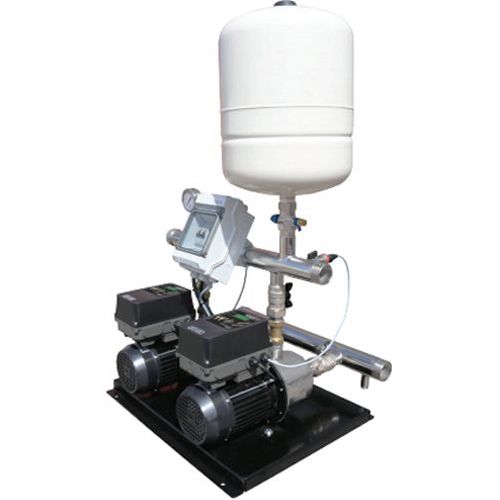

Aquaboost IBolt 09 Range - Twin Booster Pump Set
The Aquaboost IBolt range of twin pump booster sets features two horizontal multistage pumps controlled by air-cooled variable speed frequency inverters mounted directly on the pump motors. The twin pump 09 range includes 0903, 0904 and 0906 pump variants capable of delivering flow rates up to 15m3/hr (per pump) and capable of producing head pressures of up to 7.1 bar.
Features:
- Flow rates up to 30m3/hr
- Head pressure up to 3.6 bar
- 304 stainless steel pumps
- Dry run protection
- 304/316 stainless steel manifold assembly
- Nickel plated WRAS approved ball valves
- Air cooled invertor
- BMS volt free contacts
- Glycerine filled pressure gauge
- Powder coated base plate
- Union fittings on suction and discharge
- WRAS approved 24 litre pressure vessel
- 2 year warranty
| SKU | 47392 |
|---|---|
| Manufacturer | Stuart Turner |
| Manufacturers Warranty | 2 Years |
| GTIN | 5050400473923 |
| Weight | 55.0 Kg |
| Dimensions | 1085mm (h) x 650mm (w) x 585mm (d) |
| Inlet Dimension | 2 1/2" BSP |
| Discharge Dimension | 2" BSP |
| Full Load Current (FLC) | 8.6 A |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 30 m3/hr (15 m3/hr per pump) |
| Max Head | 3.6 bar |
| Max Temperature | 40°C |
| Material | Stainless Steel |
| Seal Type | EPDM / Carbon / Ceramic |
| Impeller Material | Stainless Steel |
