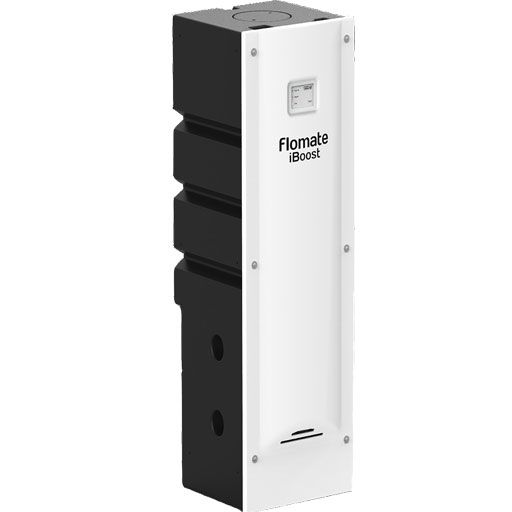

Stuart Turner Aquaboost iBoost V200-100-45 - 4.5 Bar Variable Speed Home Booster 240V

SKU
46711
MRRP £2,640.00 + VAT Our price £1,550.00 (+ VAT) Incl. VAT: £1,860.00

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

The iBoost V200 features a programmable variable speed pump control system capable of generating pressures of up to 4.5 bar and flow rates of up to 100 litres per minute.

iBoost V200 features the same capabilities as the iBoost F200 unit with the added benefits of an advanced variable speed pump control system. This enables the unit to supply water at a constant programmable water pressure as the water demands on the system increase.

  • Reduces noise by adjusting pump speed to meet actual water demand
  • Provides a 'soft start' and maintains stable water pressure when additional outlets are opened
  • Optimises pump efficiency and lifespan
  • Reduces power consumption
  • Control panel and status indicators

Applications

Boosting cold mains water pressure and flow in larger domestic and light commercial applications.

Features and Applications:

  • 4.5 bar pressure
  • Up to 100l/min
  • High capacity fill valve
  • Continuous 20 l/min minimum*
  • Quiet operation
  • Automatic switching
  • Dry run protection
  • Continuously rated
  • Boosting water pressure and flow in larger domestic and light commercial applications

*Assumes 1 Bar inlet pressure.

More Information
SKU 46711
Manufacturer Stuart Turner
Manufacturers Warranty 3 Years
GTIN 5050400467113
Weight 60.0 Kg

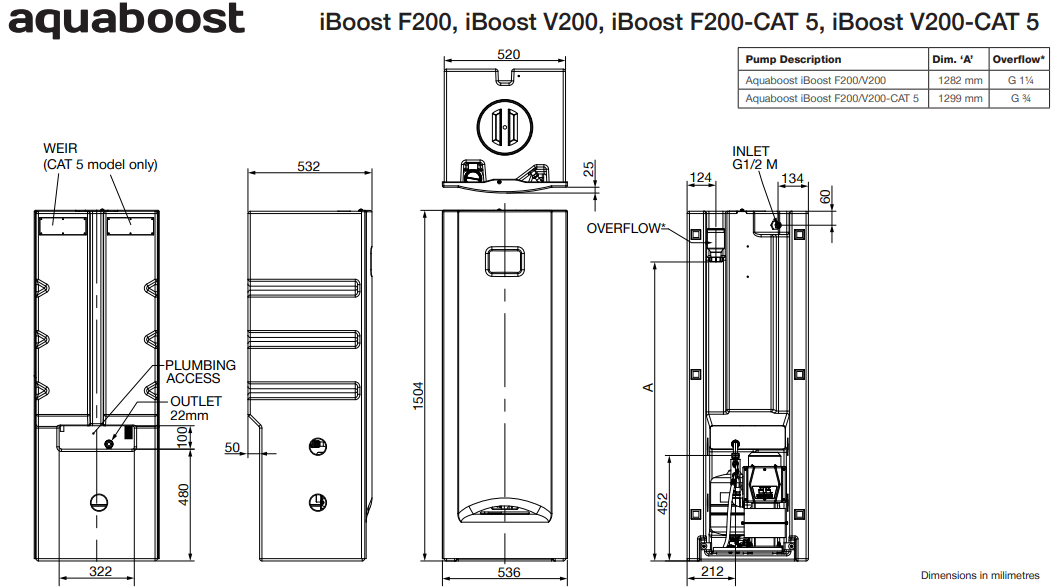

Dimensions 529mm Long x 536mm Wide x 1504mm High (exc. Hoses)
Inlet Dimension G ½ male
Discharge Dimension G ¾ male
Motor Size (kW/W) 1260W
Full Load Current (FLC) 5.5A
Voltage 240V 1Ph 50Hz
Cable Length 3m
Max Flow 100 l/min
Max Head 4.5 Bar
Material Plastic
