Stuart Turner Aquaboost iMatic 1200 Twin Pump Booster Set
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
iMatic Booster System
iMatic 0504 2S-CMT/24 1200

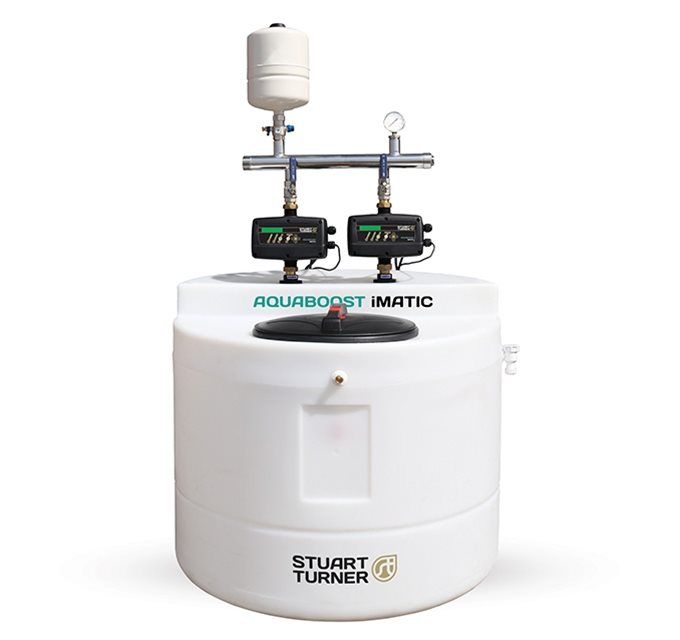

The Aquaboost iMatic range of booster sets features one or two submersible multistage pumps controlled by a dedicated variable speed frequency invertor.
The twin pump 1200 litre tank is fitted with two 0504 stainless steel pumps, capable of delivering flow rates up to 10.0 m³/hour per pump and capable of producing head pressures of up to 6.6 bar.
Pump control mode can be duty/standby or duty/assist.
Key Features
- Flow rates up to 20.0 m³/h
- Head pressure up to 6.6 bar
- Twin 304 stainless steel pumps
- 1200 litre plastic molded tank, constructed from WRAS approved material
- Dry run protection
- Stainless steel / brass discharge fittings
- Nickel plated WRAS approved ball valves
- Union fittings on controller
- WRAS approved 24 litre pressure vessel
- BMS volt free contacts
| SKU | 47361 |
|---|---|
| Manufacturer | Stuart Turner |
| Manufacturers Warranty | 2 Years |
| GTIN | 5050400473619 |
| Weight | 85.0 Kg |
| Dimensions | 1000mm x 1000mm x 2330mm |
| Inlet Dimension | 1/2" bsp |
| Discharge Dimension | 11/2" bsp |
| Full Load Current (FLC) | 12.8 A |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 20 m3/hr (10.0 m3/hr each pump) |
| Max Head | 6.6 Bar |
