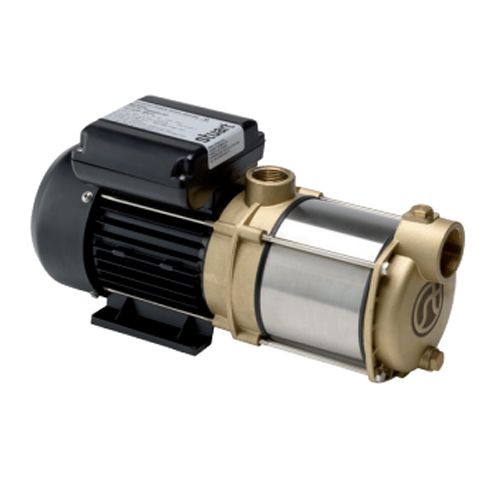

Stuart Turner CH 4-30 (2.5 Bar) Centrifugal Multi-Stage Booster Pump 240V

SKU
46553
MRRP £424.00 + VAT Our price £313.00 (+ VAT) Incl. VAT: £375.60

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

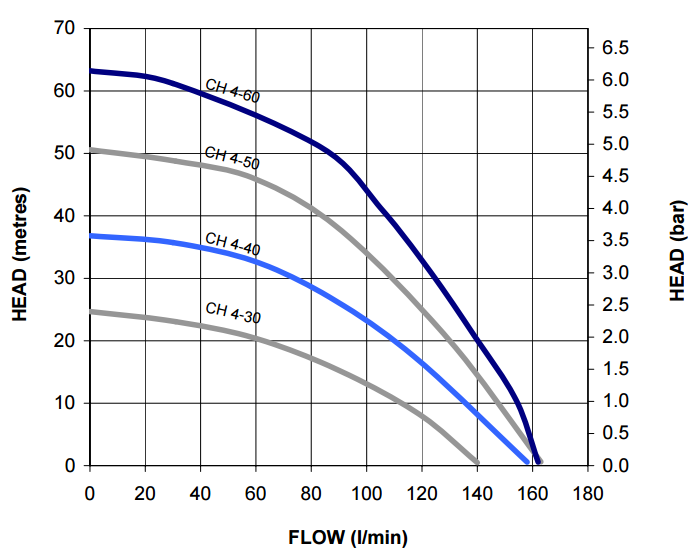

The CH 4 range of centrifugal multistage pumps are built to provide a high quality and reliable solution for applications that require high flow rates of up to 160 l/min and heads up to 62 metres.

The range includes 4 base pumps suitable for independent switching.

Application

  • The CH 4 range of pumps are the ideal base unit for pressure boosting sets or for applications where long pipe runs or high heads may be involved
  • The range is suitable for commercial or domestic use, pumping hot or cold water
  • Self priming up to 5m
  • Quiet operation
  • Easy to install

The CHM range comes with a 2 Year Warranty.

More Information
SKU 46553
Manufacturer Stuart Turner
Manufacturers Warranty 2 Years
GTIN 5050400465539
Weight 11.1 Kg

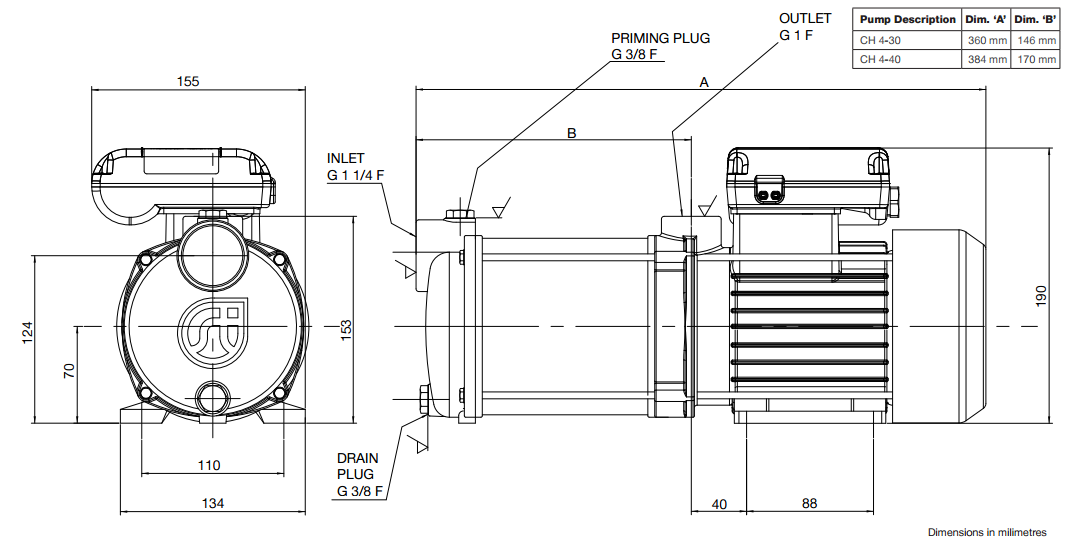

Dimensions 190mm High x 360mm Deep x 156mm Wide
Motor Size (kW/W) 0.55kW
Full Load Current (FLC) 3.8A
Voltage 240V 1Ph 50Hz
Max Flow 140 l/min
Max Head 26m (2.5 Bar)
Max Temperature 65°C
Material Stainless Steel
Seal Type EPDM / Carbon / Ceramic
Impeller Material Stainless Steel
