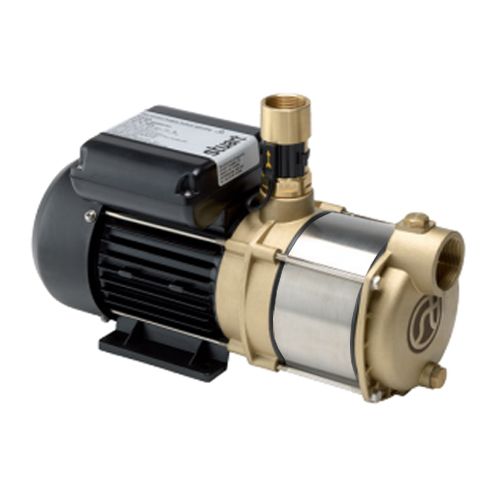

Stuart Turner CH 4-30 FL (2.5 Bar) Automatic Flow Multi-Stage Booster Pump 240V
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
The CH Automatic Flow Switch range of centrifugal multistage pumps offer a simple solution to pressure boosting where a gravity flow of approx. 1 l/min already exists. This range is Ideal for the pressurisation of water to outlets in a positive head application, where an instant boosted supply is required from a simple to install package and is suitable for commercial or domestic use, pumping hot or cold water.
The CH 4-30 FL (2.5 Bar) Horizontal Multi-Stage Booster Pump has the following features:
- Fully automatic control - positive head
- No on-site setting/commissioning
- Built in ‘no water’ cut out
- No pulsing in operation
- Easy installation
- Reliable
- Quiet operation
The CH range comes with a 2 Year Warranty.
| SKU | 46578 |
|---|---|
| Manufacturer | Stuart Turner |
| Manufacturers Warranty | 2 Years |
| GTIN | 5050400465782 |
| Weight | 11.5 Kg |

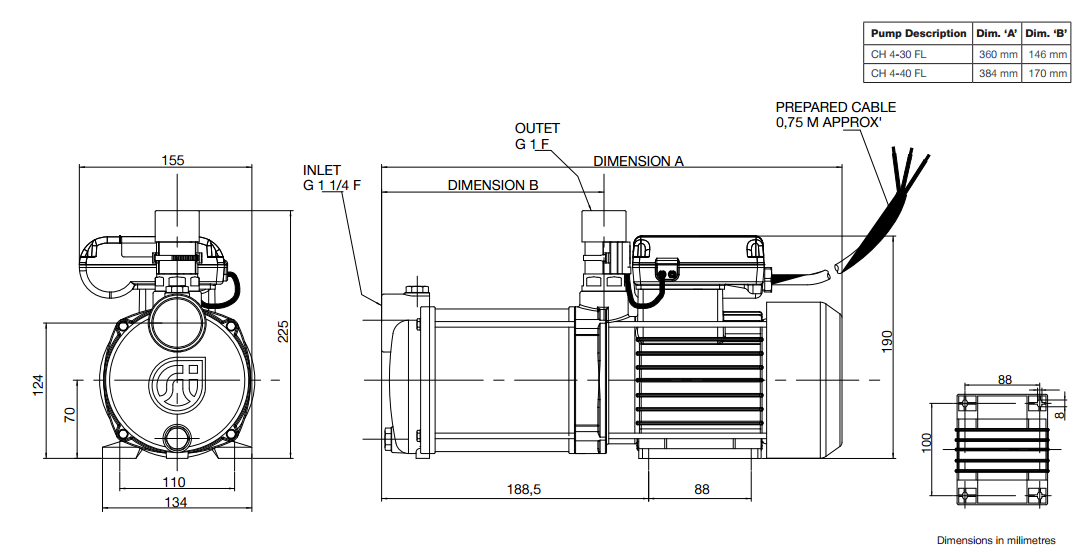

| Dimensions | 228mm High x 360mm Deep x 155mm Wide |
| Motor Size (kW/W) | 550W |
| Full Load Current (FLC) | 3.6A |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 135 l/min |
| Max Head | 26m (2.5 Bar) |
| Max Pressure | 6 Bar |
| Max Temperature | 65°C |
| Material | Stainless Steel |
| Seal Type | EPDM / Carbon / Ceramic |
| Impeller Material | Stainless Steel |
