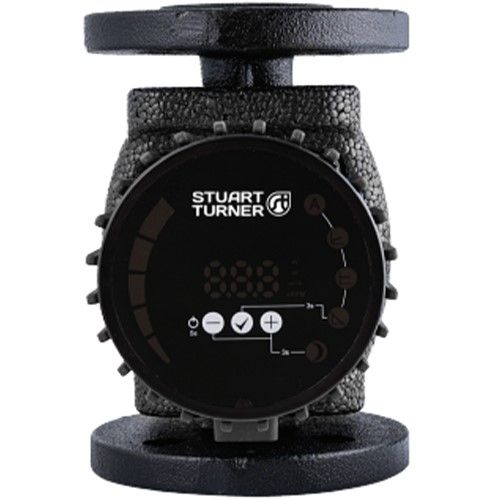

Stuart Turner Pulse 32-40F (220) Variable Speed Circulator 240v

Name: Stuart Turner Pulse 32-40F (220) Variable Speed Circulator 240v
Brand: Stuart Turner
SKU: 47408
Price: 512 GBP
Availability: InStock

SKU

47408

MRRP £799.00 + VAT Our price £512.00 (+ VAT) Incl. VAT: £614.40

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Choose Gasket Set Option

Choose Flange Set Option

Choose Bellow Set Option

Installation Bundle

Extended Warranty

Additional 3 year warranty + £204.00

Qty

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Stuart Turner Pulse 32-40F (220) Variable Speed Circulator 240v - 47408

Stuart Pulse Cast Iron Circulators are used for the transfer of water within systems for hot water heating, air-conditioning, and ventilation. These single head variable speed circulators are designed to constantly monitor and regulate pressure and flow and adjust according to the set operating mode.

Features:

Automatic, proportional pressure, constant pressure and constant speed operating modes
Automatic night operation mode
ECM permanent magnet technology
Automatic venting cycle
Robust cast iron housing
Continuously rated
Carbon-Graphite bearings
220mm fitted length
DN32 flanged connection
ErP compliant
Built-in over-current, temperature and over-voltage protection
LED display control panel
2 year warranty

Applications:

Hot-water heating systems
Air conditioning and ventilation systems

More Information
SKU	47408
Manufacturer	Stuart Turner
Manufacturers Warranty	2 Years
GTIN	5050400474081
Weight	6.4 Kg
Dimensions	220mm (h) x 140mm (w) x 260mm (d)
Connection Type	32mm Flanged
Full Load Current (FLC)	0.6A
Voltage	240V 1Ph 50Hz
Max Flow	8.6m3/hr
Max Head	4.2m
Max Pressure	10 Bar
Max Temperature	-10°C to 110°C
Material	Cast Iron
Impeller Material	Polyethersulfone
