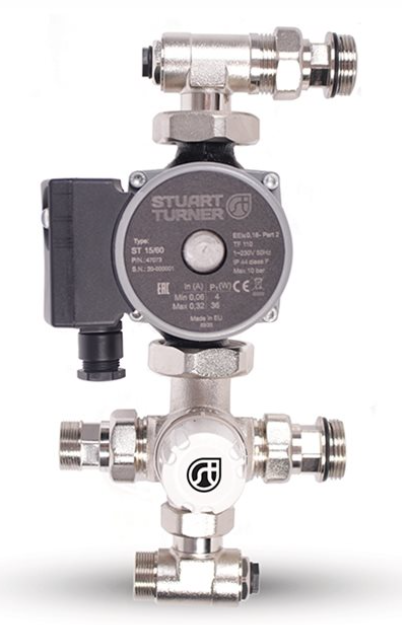

Stuart Turner Underfloor Heating Pump Mixer Set
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Stuart underfloor heating pump mixer sets are designed to blend flow and return from the heat source in underfloor heating systems which have a heating load of up to 15kW. The pump sets have been specifically designed for installation with manifolds and their lightweight design makes them ideal for wall mounting. Featuring a fully ERP compliant, energy-efficient circulator as well as a port for an automatic air vent, the Stuart UFH Mixer is the installer's choice for fuel-efficient, reliable underfloor heating installations.
Features:
- Blends flow and return to keep a constant floor temperature
- Supplied with an ERP compliant high efficiency Stuart 15/60 circulator
- Compact bolt on unit providing quick and simple installation
- Suitable for a heat loading of up to 15kW
- Temperature range 30 - 65°C
- Maximum pressure 10 bar
- Maximum inlet pressure ratio 2:1
- Maximum inlet temperature 90°C
- Connection sizes 22mm compression for boiler flow & return
- 3 year warranty, including circulator
Applications:
- Under floor heating systems with a heating load of up to 15 kW

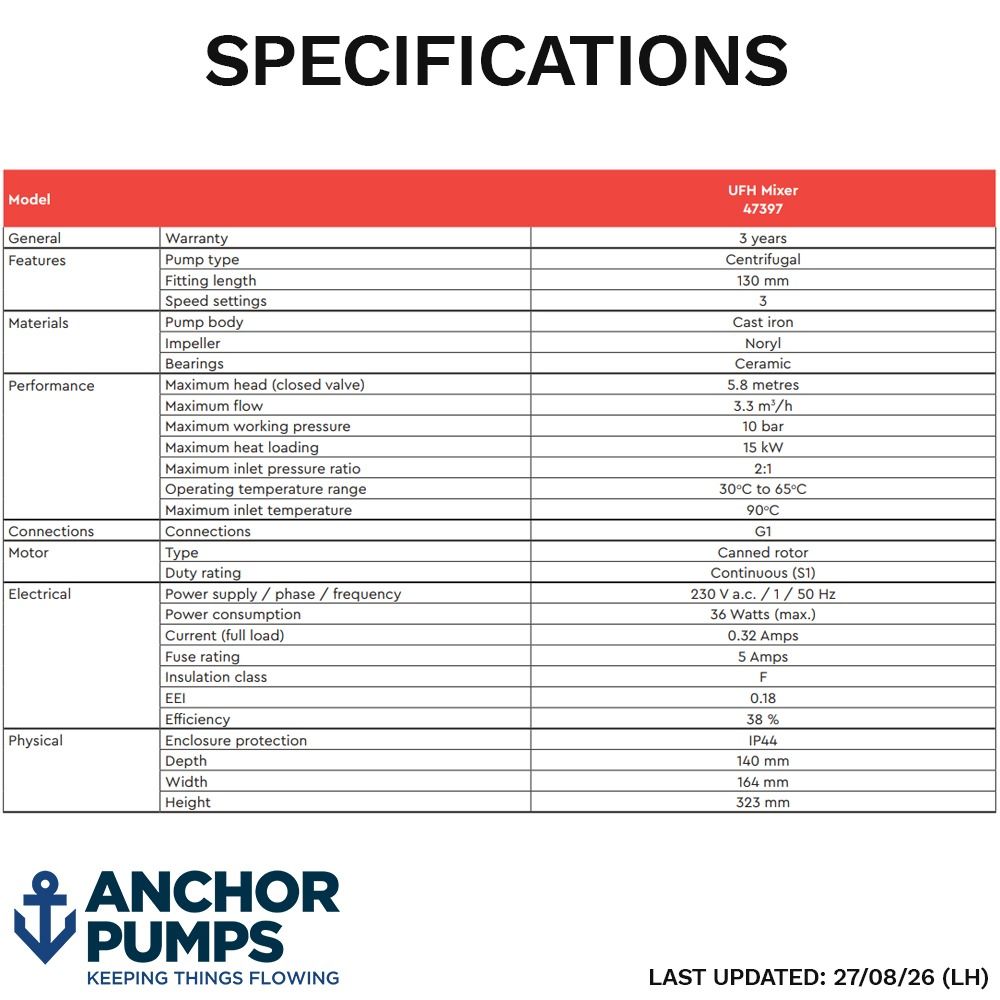

| SKU | 47397 |
|---|---|
| Manufacturer | Stuart Turner |
| Manufacturers Warranty | 3 Years |
| GTIN | 5050400473978 |
| Weight | 4.0 Kg |

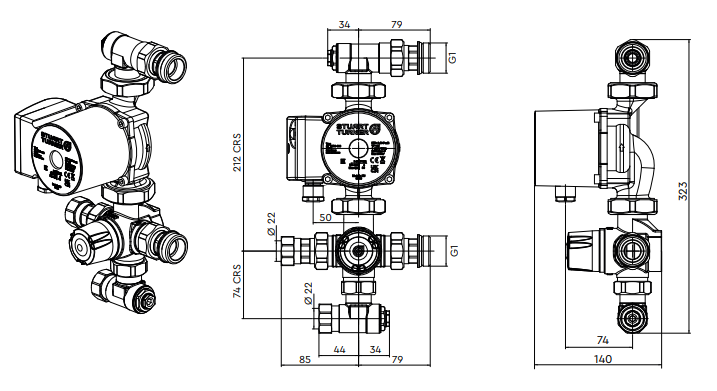

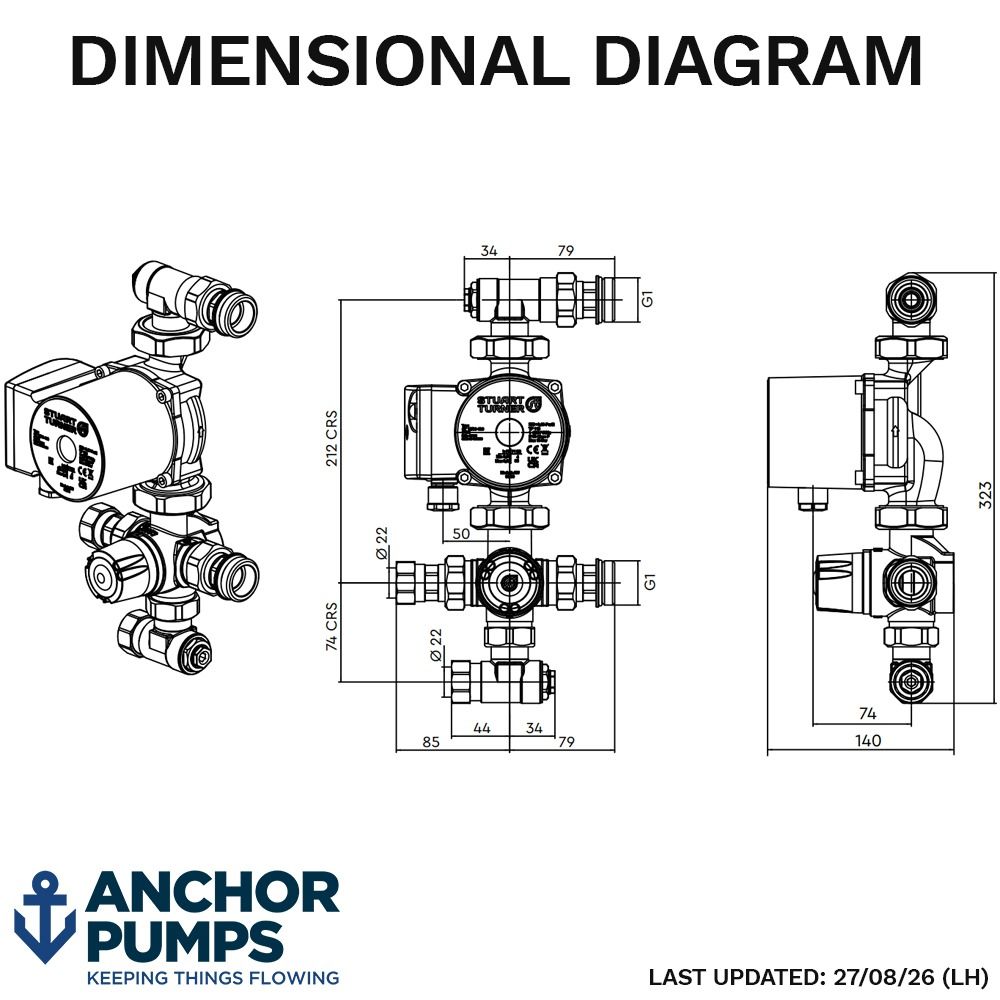

| Dimensions | 323mm (h) x 164mm (w) x 140mm (d) |
| Connection Type | 1 Inch BSP |
| Full Load Current (FLC) | 0.32A |
| Voltage | 240V 1Ph 50Hz |

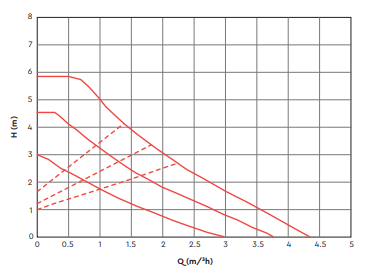

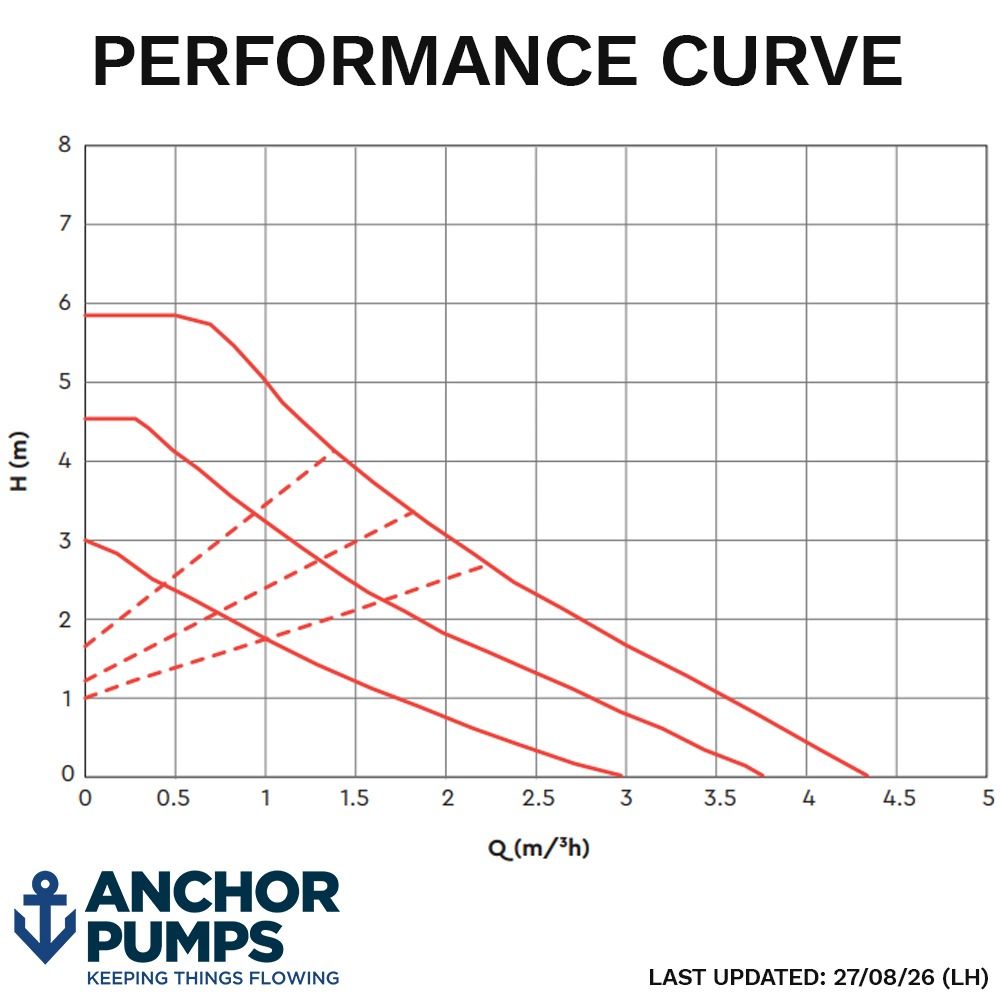

| Max Flow | 3.3m3/hr |
| Max Head | 5.8m |
| Max Pressure | 10 Bar |
| Material | Cast Iron |
| Impeller Material | Noryl |
