TP 32-150/2 B Single Stage Single Head Bronze for Hot Water In Line 0.37kW 2 Pole 240V
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Grundfos TP 32-150/2 B A F Z BQQE Single Stage Single Head Bronze for Hot Water Service In-Line Pump with 2 Pole 240V 1Ph 50Hz, 0.37kW Motor and flanged pump connections.
- Single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter.
- Suitable for heating systems, air conditioning and cooling systems, domestic water systems, ground-source heat pump systems and solar heating systems.
- Neck rings and impeller made of stainless steel.
- The pump is of the top-pull-out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework.
- The pump is fitted with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756.
- The pump is fitted with a fan-cooled asynchronous motor.
- Corrosion resistant maintenance-free mechanical shaft seal.
- 32mm flanged connection.

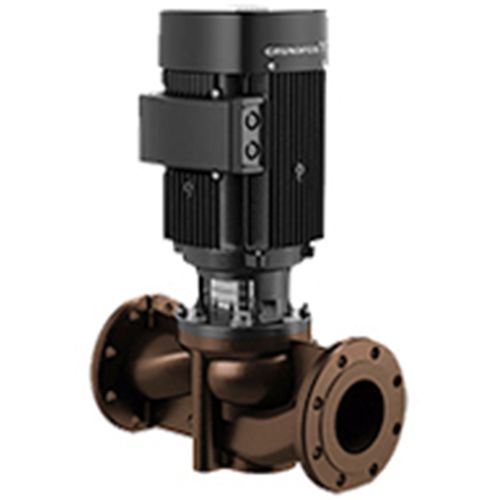

IMAGE FOR ILLUSTRATION PURPOSES ONLY.
| SKU | 98958115 |
|---|---|
| Manufacturer | Grundfos |
| Manufacturers Warranty | 2 Years |
| GTIN | 5712604245828 |
| Weight | 29.4 Kg |
| Dimensions | 395mm (h) x 280mm (w) x 200mm (d) |
| Connection Type | 32mm Flanged |
| Motor Size (kW/W) | 0.37 kW |
| Full Load Current (FLC) | 2.95/2.70 A |
| Voltage | 240V 1Ph 50Hz |
| RPM | 2865rpm |
| Max Flow | 8.5m3/hr |
| Max Head | 15m |
| Max Temperature | 120 degrees C |
| Material | Bronze |
| Impeller Material | Stainless Steel |
