TP 65-60/4 B Single Stage Single Head Bronze for Hot Water In Line 0.55kW 4 Pole 240V

Name: TP 65-60/4 B Single Stage Single Head Bronze for Hot Water In Line 0.55kW 4 Pole 240V
Brand: Grundfos
SKU: 98957999
Price: 3984 GBP
Availability: InStock

SKU

98957999

MRRP £4,686.00 + VAT Our price £3,984.00 (+ VAT) Incl. VAT: £4780.80

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Grundfos TP 65-60/4 B A F Z BQQE Single Stage Single Head Bronze for Hot Water Service In-Line Pump with 4 Pole 240V 1Ph 50Hz, 0.55kW Motor and flanged pump connections.

Single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter.
Suitable for heating systems, air conditioning and cooling systems, domestic water systems, ground-source heat pump systems and solar heating systems.
Neck rings and impeller made of stainless steel.
The pump is of the top-pull-out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework.
The pump is fitted with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756.
The pump is fitted with a fan-cooled asynchronous motor.
Corrosion resistant maintenance-free mechanical shaft seal.
65mm flanged connection.

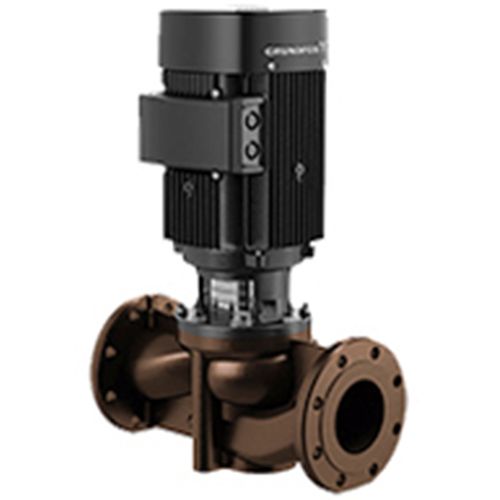

IMAGE FOR ILLUSTRATION PURPOSES ONLY.

More Information
SKU	98957999
Manufacturer	Grundfos
Manufacturers Warranty	2 Years
GTIN	5712604244661
Weight	47.9 Kg
Dimensions	475mm (h) x 340mm (w) x 222mm (d)
Connection Type	65mm Flanged
Motor Size (kW/W)	0.55 kW
Full Load Current (FLC)	4 A
Voltage	240V 1Ph 50Hz
RPM	1420rpm
Max Flow	38.5m3/hr
Max Head	6m
Max Temperature	120 degrees C
Material	Bronze
Impeller Material	Stainless Steel
