TPD 100-480/2 A F A BQQE 30kW Single Stage Twin Head In Line 2 Pole 415v

SKU
96109252
MRRP £23,413.00 + VAT Our price £13,580.00 (+ VAT) Incl. VAT: £16296.00

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
13
Hours
07
Mins
55
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Grundfos TPD 100-480/2 A F A BQQE Single Stage Twin Head In-Line Pump with 2 Pole 415V 3Ph 50Hz, 30kW Motor and flanged pump connections.

Single-stage centrifugal in-line dual-head pump:

  • neck rings and impeller made of cast iron
  • cataphoresis treatment
  • shell coupling
  • top-pull-out principle for easy maintenance
  • optimized hydraulics
  • in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
  • corrosion resistant maintenance-free mechanical shaft seal.
  • 100mm flanged

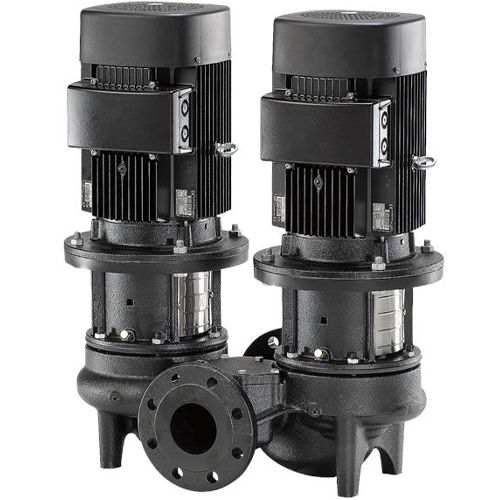

IMAGE FOR ILLUSTRATION PURPOSES ONLY.

More Information
SKU 96109252
Manufacturer Grundfos
Manufacturers Warranty 2 Years
GTIN 5700396982298
Weight 779.0 Kg

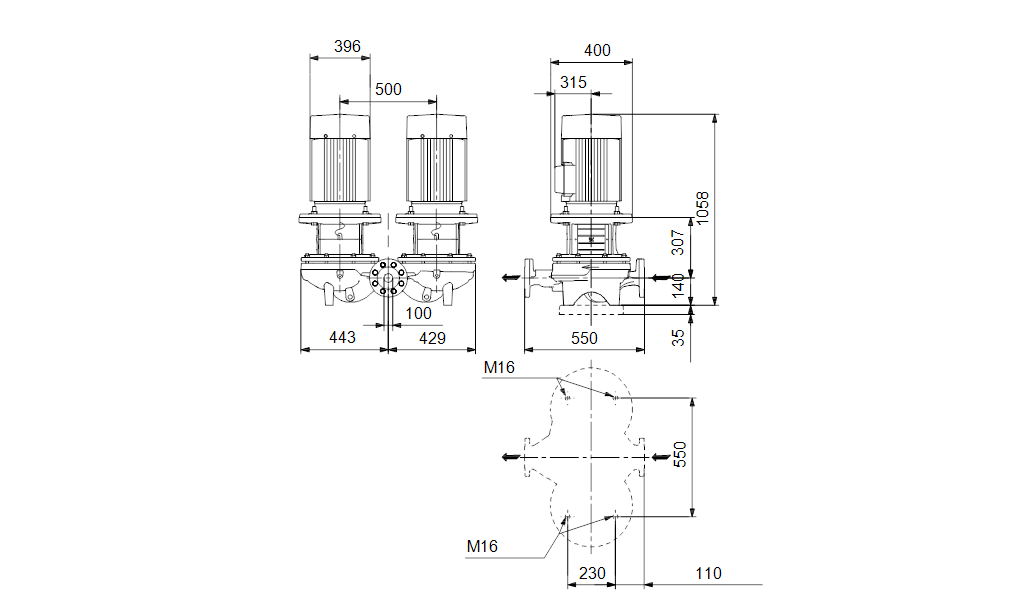

Dimensions 1025mm (h) x 872mm (w) x 550mm (d)
Connection Type 100mm Flanged
Motor Size (kW/W) 2 x 30 kW
Voltage 415V 3Ph 50Hz
RPM 2950rpm
Max Flow 177m3/hr
Max Head 48m
Max Temperature 120 degrees C
Material Cast Iron
Impeller Material Cast Iron
