TPD 150-60/6 A F A BQQE 2.2kW Single Stage Twin Head In Line 6 Pole 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

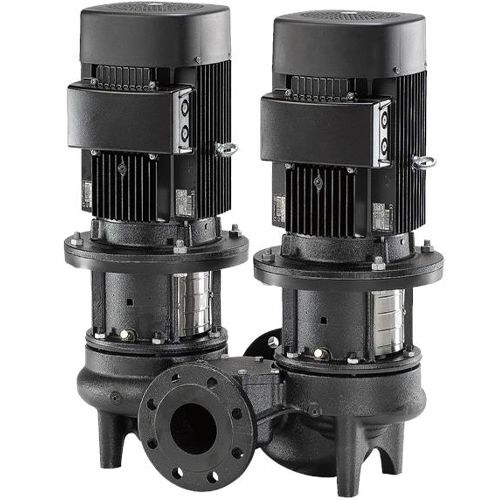

Grundfos TPD 150-60/6 A F A BQQE Single Stage Twin Head In-Line Pump with 6 Pole 415V 3Ph 50Hz, 2.2kW Motor and flanged pump connections.
Single-stage centrifugal in-line twin-head pump:
- neck rings and impeller made of cast iron
- cataphoresis treatment
- shell coupling
- top-pull-out principle for easy maintenance
- optimized hydraulics
- in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
- corrosion resistant maintenance-free mechanical shaft seal.
- 150mm flanged
IMAGE FOR ILLUSTRATION PURPOSES ONLY.

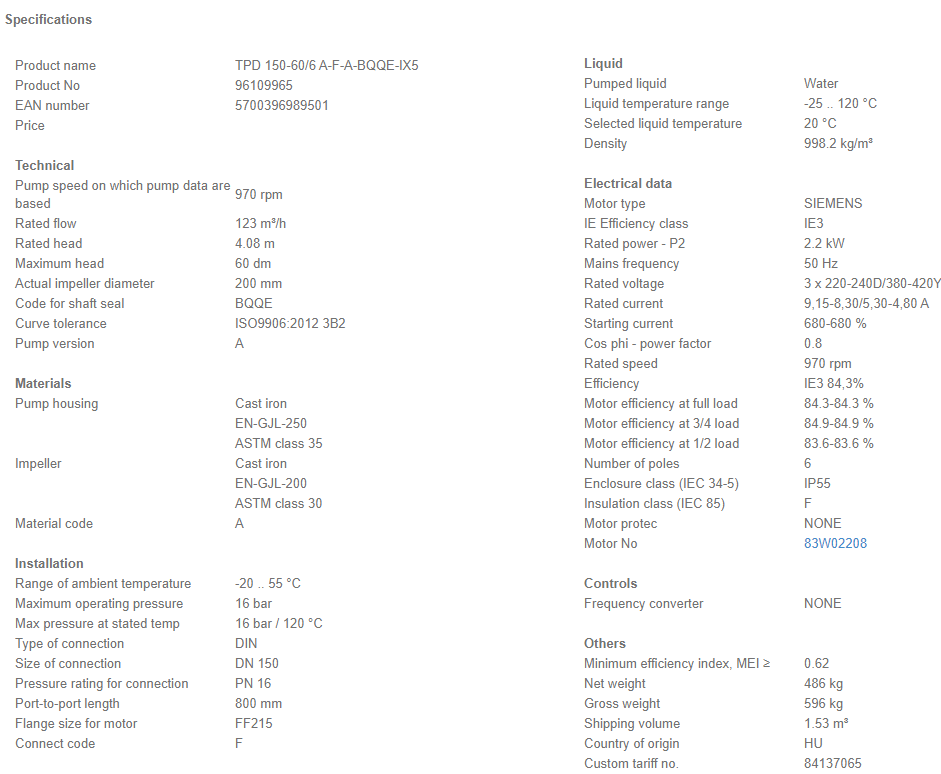

| SKU | 96109965 |
|---|---|
| Manufacturer | Grundfos |
| Manufacturers Warranty | 2 Years |
| GTIN | 5700396989501 |
| Weight | 575.0 Kg |

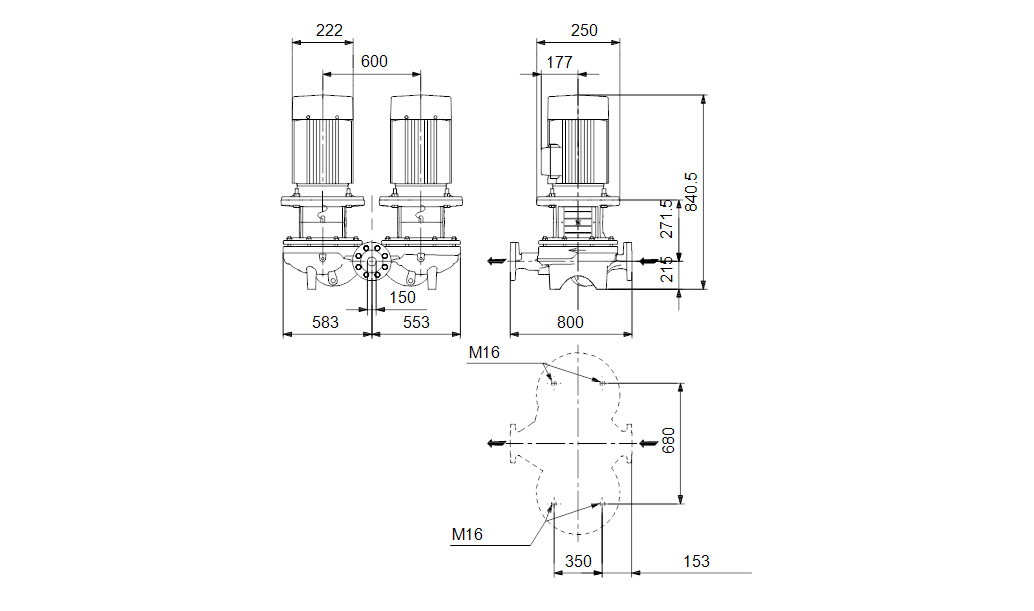

| Dimensions | 841mm (h) x 1136mm (w) x 800mm (d) |
| Connection Type | 150mm Flanged |
| Motor Size (kW/W) | 2.2 kW |
| Full Load Current (FLC) | 5,30-4,80 A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 970rpm |
| Max Flow | 139m3/hr |
| Max Head | 6m |
| Max Temperature | 120 degrees C |
| Material | Cast Iron |
| Impeller Material | Cast Iron |
