TPD 40-360/2 A F A BQQE 4kW Single Stage Twin Head In Line 2 Pole 415v

Name: TPD 40-360/2 A F A BQQE 4kW Single Stage Twin Head In Line 2 Pole 415v
Brand: Grundfos
SKU: 96086955
Price: 3650 GBP
Availability: InStock

SKU

96086955

MRRP £6,293.00 + VAT Our price £3,650.00 (+ VAT) Incl. VAT: £4380.00

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Choose Flange Set Option

Choose Bellow Set Option

Choose Gasket Set Option

Qty

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Grundfos TPD 40-360/2 A F A BQQE Single Stage Twin Head In-Line Pump with 2 Pole 415V 3Ph 50Hz, 4kW Motor and flanged pump connections.

Single-stage centrifugal in-line dual-head pump:

neck rings and impeller made of cast iron
cataphoresis treatment
shell coupling
top-pull-out principle for easy maintenance
optimized hydraulics
in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
corrosion resistant maintenance-free mechanical shaft seal.
40mm flanged

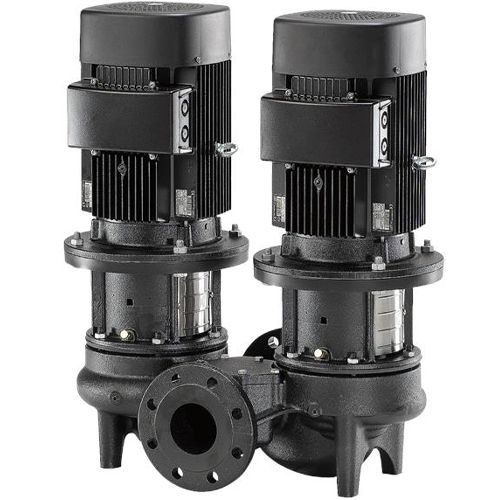

IMAGE FOR ILLUSTRATION PURPOSES ONLY.

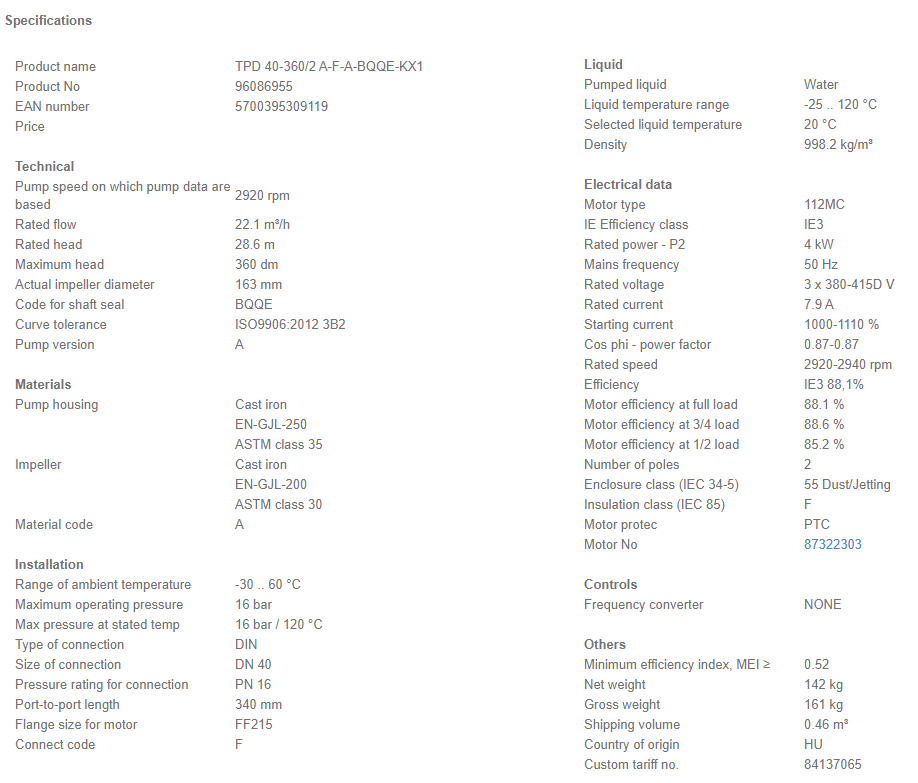

More Information
SKU	96086955
Manufacturer	Grundfos
Manufacturers Warranty	2 Years
GTIN	5700395309119
Weight	158.0 Kg

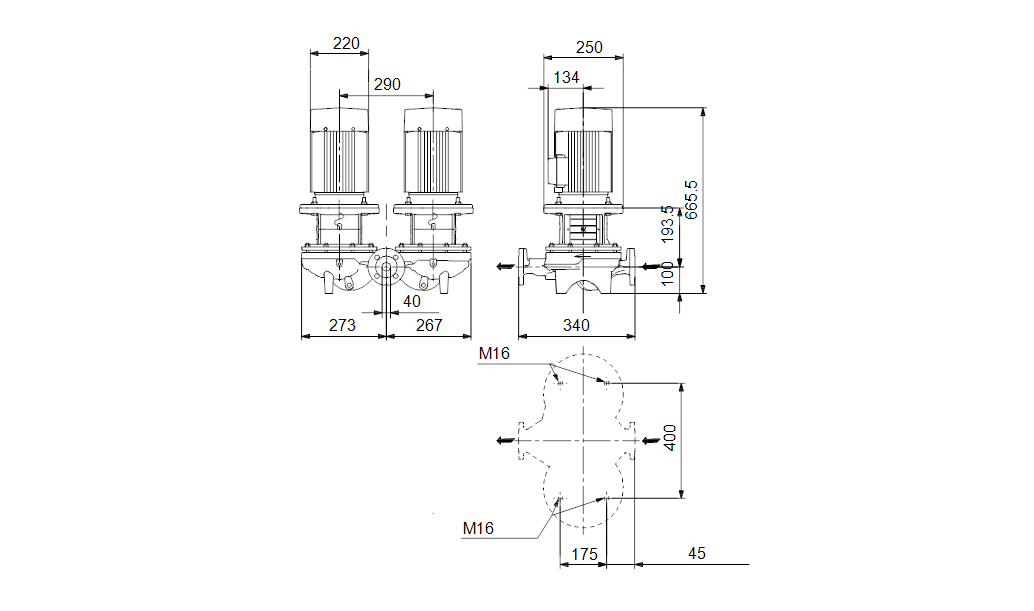

Dimensions	666mm (h) x 540mm (w) x 340mm (d)
Connection Type	40mm Flanged
Motor Size (kW/W)	2 x 4 kW
Full Load Current (FLC)	7.9 A
Voltage	415V 3Ph 50Hz
RPM	2920rpm

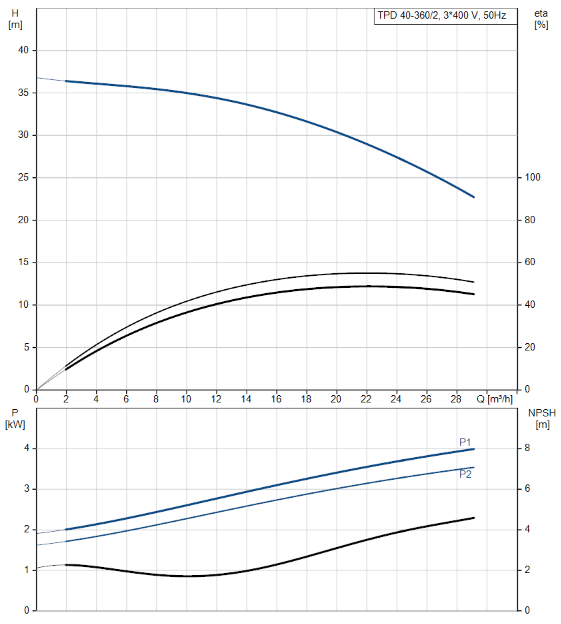

Max Flow	29m3/hr
Max Head	36m
Max Temperature	120 degrees C
Material	Cast Iron
Impeller Material	Cast Iron
