TPD 65-110/4 A F A BQQE 1.1kW Single Stage Twin Head In Line 4 Pole 240v

Name: TPD 65-110/4 A F A BQQE 1.1kW Single Stage Twin Head In Line 4 Pole 240v
Brand: Grundfos
SKU: 96384292
Price: 3496 GBP
Availability: InStock

SKU

96384292

MRRP £6,027.00 + VAT Our price £3,496.00 (+ VAT) Incl. VAT: £4195.20

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Choose Flange Set Option

Choose Bellow Set Option

Choose Gasket Set Option

Qty

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

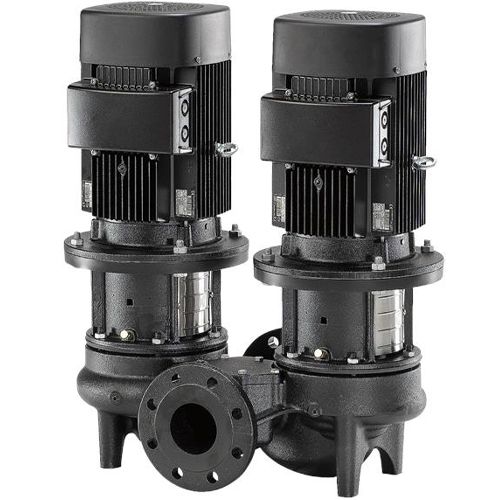

Grundfos TPD 65-110/4 A F A BQQE Single Stage Twin Head In-Line Pump with 4 Pole 240V 1Ph 50Hz, 1.1kW Motor and flanged pump connections.

Single-stage centrifugal in-line twin-head pump:

neck rings and impeller made of cast iron
cataphoresis treatment
shell coupling
top-pull-out principle for easy maintenance
optimized hydraulics
in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
corrosion resistant maintenance-free mechanical shaft seal.
65mm flanged

IMAGE FOR ILLUSTRATION PURPOSES ONLY.

Delivery on this Pump is 3 weeks.

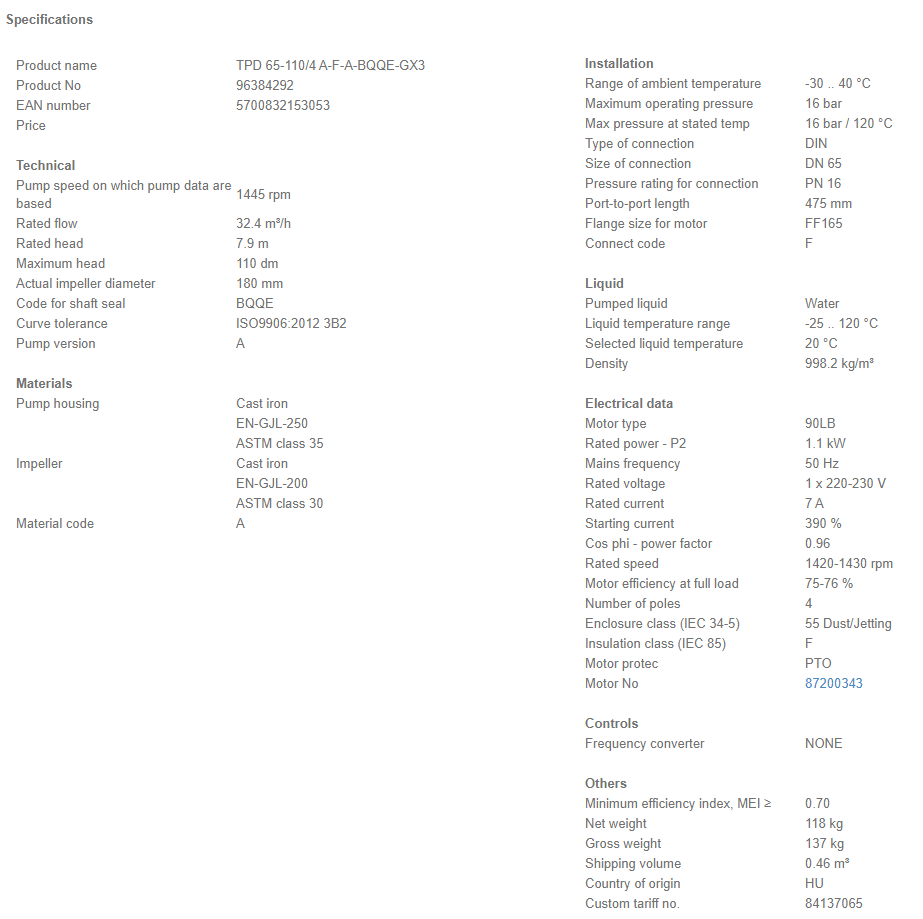

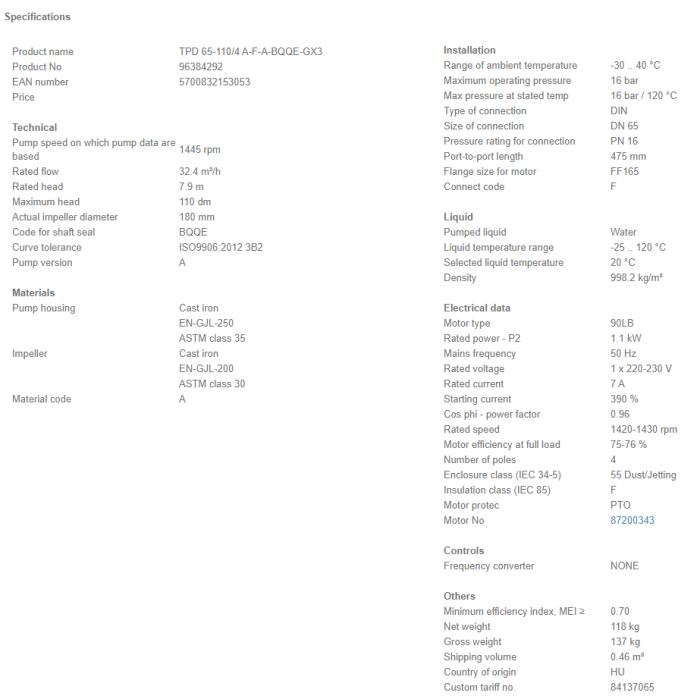

More Information
SKU	96384292
Manufacturer	Grundfos
Manufacturers Warranty	2 Years
GTIN	5700832153053
Weight	160.0 Kg

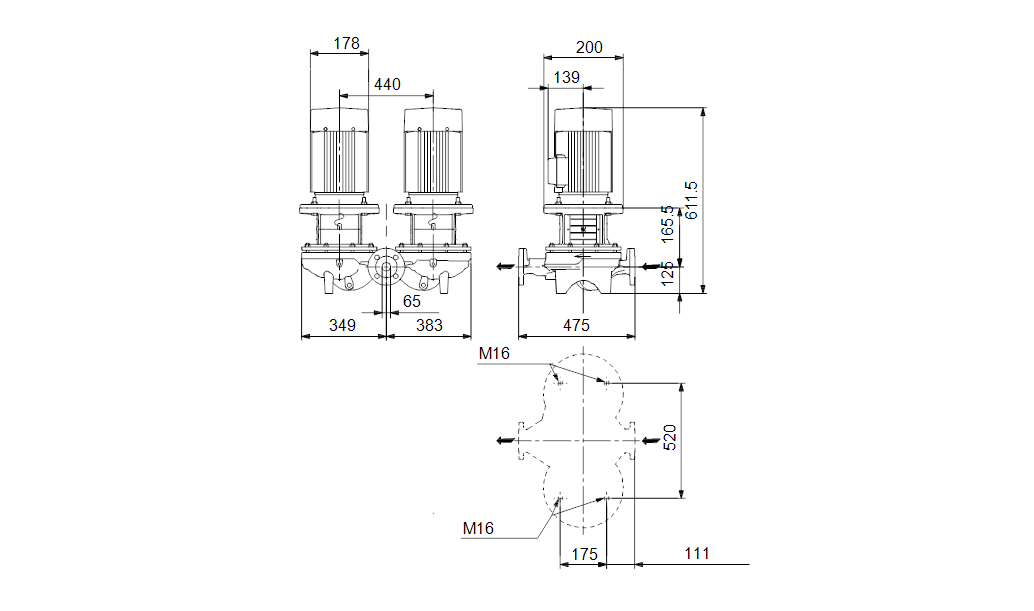

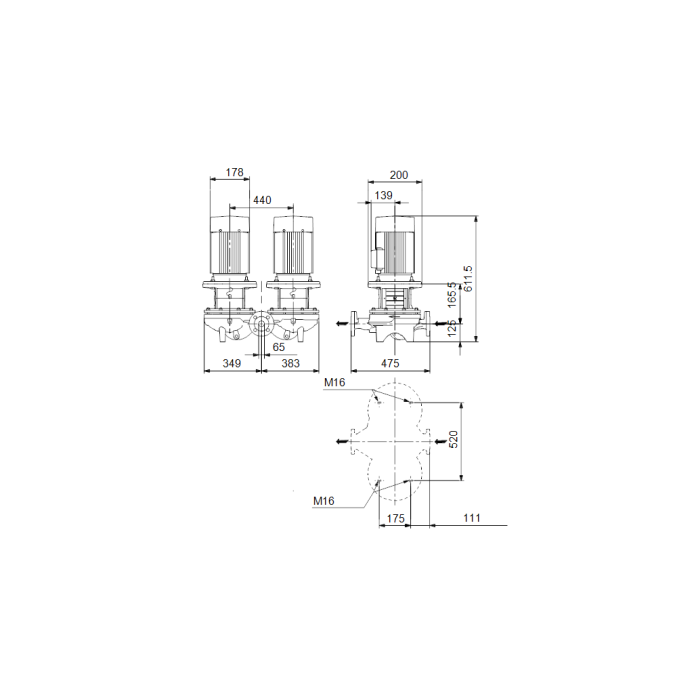

Dimensions	612mm (h) x 732mm (w) x 475mm (d)
Connection Type	65mm Flanged
Motor Size (kW/W)	2 x 1.1 kW
Full Load Current (FLC)	7 A
Voltage	240V 1Ph 50Hz
RPM	1445rpm
Max Flow	33m3/hr
Max Head	11m
Max Temperature	120 degrees C
Material	Cast Iron
Impeller Material	Cast Iron
