TPD 65-90/4 A FA BQQE 0.55kW Single Stage Twin Head In Line 4 Pole 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Grundfos TPD 65-90/4 A F A BQQE Single Stage Twin Head In-Line Pump with 4 Pole 240V 1Ph 50Hz, 0.75kW Motor and flanged pump connections.
Single-stage centrifugal in-line twin-head pump:
- neck rings and impeller made of cast iron
- cataphoresis treatment
- shell coupling
- top-pull-out principle for easy maintenance
- optimized hydraulics
- in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
- corrosion resistant maintenance-free mechanical shaft seal.
- 65mm flanged

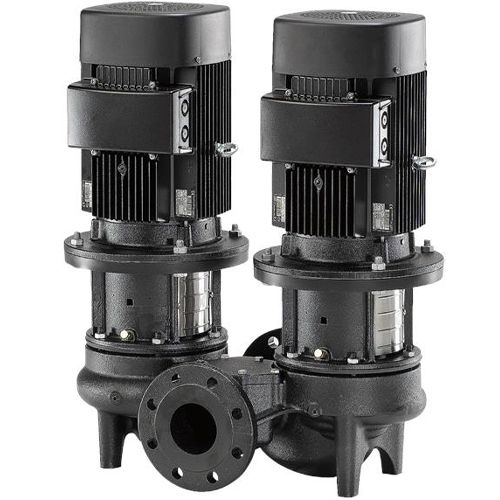

IMAGE FOR ILLUSTRATION PURPOSES ONLY.

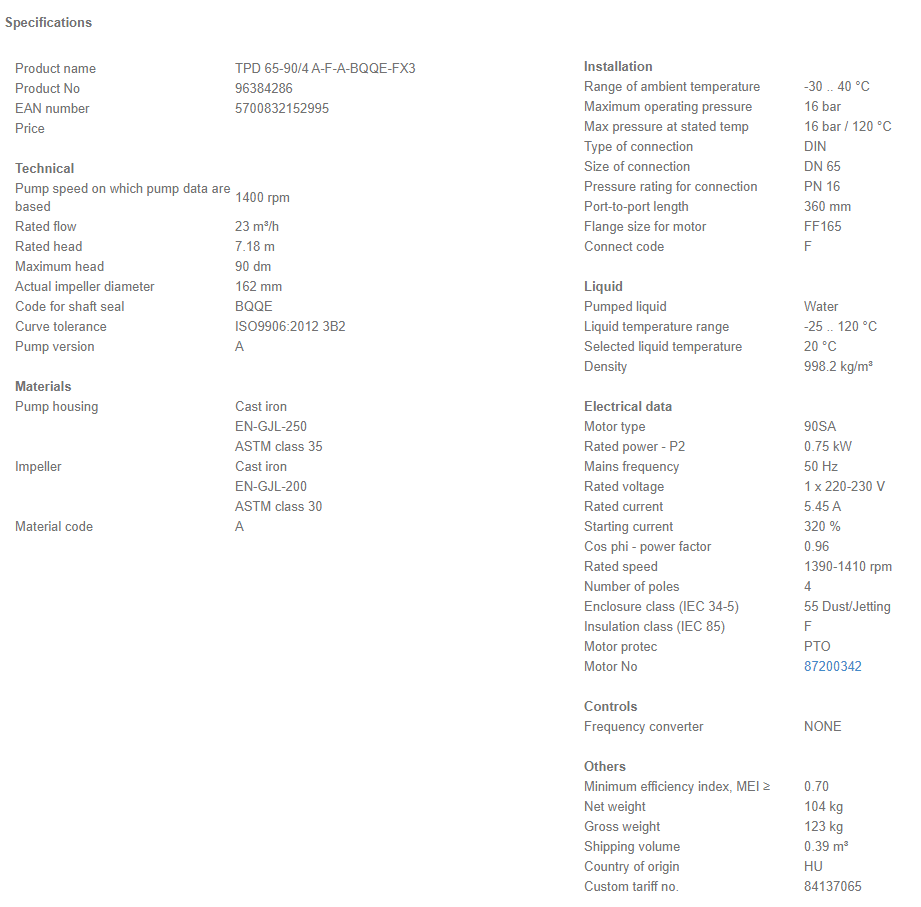

| SKU | 96384286 |
|---|---|
| Manufacturer | Grundfos |
| Manufacturers Warranty | 2 Years |
| GTIN | 5700832152995 |
| Weight | 122.0 Kg |

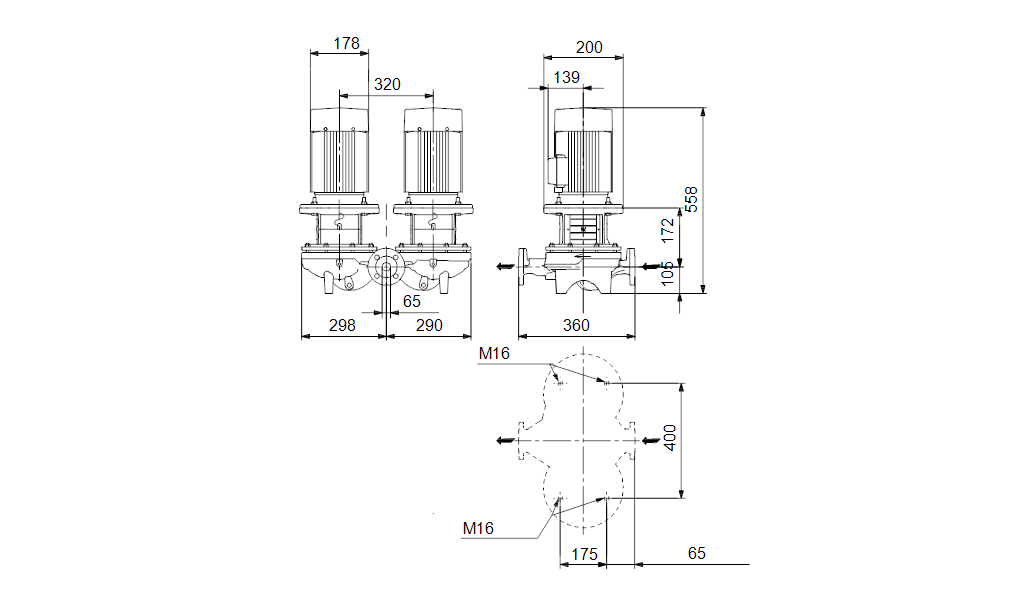

| Dimensions | 558mm (h) x 588mm (w) x 360mm (d) |
| Connection Type | 65mm Flanged |
| Motor Size (kW/W) | 2 x 0.75 kW |
| Full Load Current (FLC) | 5.45 A |
| Voltage | 240V 1Ph 50Hz |
| RPM | 1400rpm |
| Max Flow | 29m3/hr |
| Max Head | 9m |
| Max Temperature | 120 degrees C |
| Material | Cast Iron |
| Impeller Material | Cast Iron |
