TPE 125-190/4-S Series 2000 11kW Single Stage Single Head 4 Pole Variable Speed In Line 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Grundfos TPE 2000 125-190/4-S A F A BQQE Single Stage Single Head In-Line Pump with 4 Pole 415V 3Ph 50Hz, 11kW Motor and flanged pump connections.
The Grundfos TPE Series 2000 Cast Iron Pump Complete With 4 Poles Variable Speed Electric Motor and Differential Pressure Sensor.
Single-stage centrifugal in-line single-head pump:
- neck rings and impeller made of cast iron
- cataphoresis treatment
- shell coupling
- top-pull-out principle for easy maintenance
- optimized hydraulics
- in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
- corrosion resistant maintenance-free mechanical shaft seal.
- 125mm flanged connections
- The pump is fitted with a differential pressure sensor

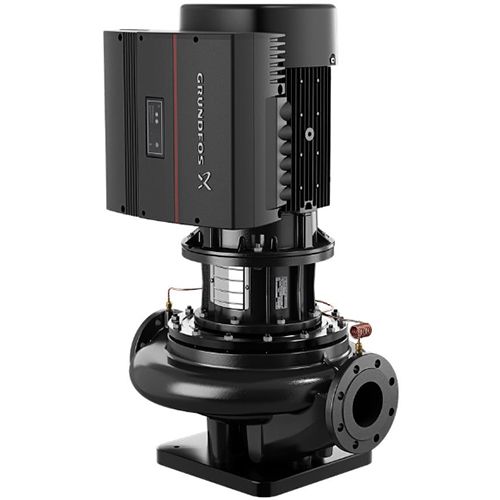

IMAGE FOR ILLUSTRATION PURPOSES ONLY.
| SKU | 98743757 |
|---|---|
| Manufacturer | Grundfos |
| Manufacturers Warranty | 2 Years |
| GTIN | 5712600824782 |
| Weight | 352.0 Kg |
| Dimensions | 1053mm (h) x 800mm (w) x 544mm (d) |
| Connection Type | 125mm Flanged |
| Motor Size (kW/W) | 11 kW |
| Full Load Current (FLC) | 17.8 A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 1470rpm |
| Max Flow | 225m3/hr |
| Max Head | 19m |
| Max Temperature | 120 degrees C |
| Material | Cast Iron |
| Impeller Material | Cast Iron |
