TPE 32-200/2 Series 1000 1.1kW Single Stage Single Head 2 Pole Variable Speed In Line 240v

Name: TPE 32-200/2 Series 1000 1.1kW Single Stage Single Head 2 Pole Variable Speed In Line 240v
Brand: Grundfos
SKU: 98514289
Price: 2142 GBP
Availability: InStock

SKU

98514289

MRRP £3,693.00 + VAT Our price £2,142.00 (+ VAT) Incl. VAT: £2570.40

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Choose Flange Set Option

Choose Bellow Set Option

Choose Gasket Set Option

Qty

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Grundfos TPE 1000 32-200/2 A F A BQQE Single Stage Single Head In-Line Pump with 2 Pole 240V 1Ph 50Hz, 1.1kW Motor and flanged pump connections.

The Grundfos TPE Series 1000 Cast Iron Pump Complete With 2 Poles Variable Speed Electric Motor

Single-stage centrifugal in-line single-head pump:

neck rings and impeller made of cast iron
cataphoresis treatment
shell coupling
top-pull-out principle for easy maintenance
optimized hydraulics
in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
corrosion resistant maintenance-free mechanical shaft seal.
32mm flanged connection
Optional flange sets available, see accessories below for options.

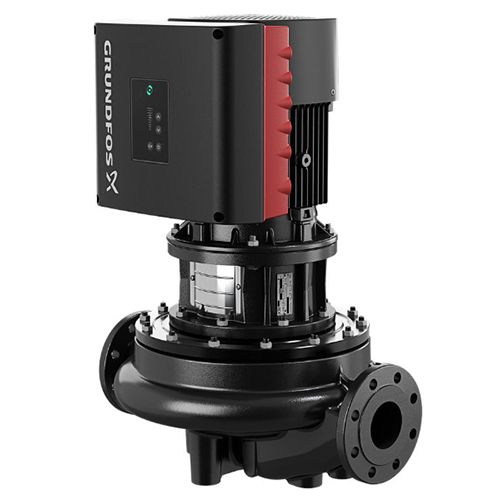

IMAGE FOR ILLUSTRATION PURPOSES ONLY.

More Information
SKU	98514289
Manufacturer	Grundfos
Manufacturers Warranty	2 Years
GTIN	5711496402951
Weight	52.0 Kg
Dimensions	488mm (h) x 340mm (w) x 242mm (d)
Connection Type	32mm Flanged
Motor Size (kW/W)	1.1 kW
Full Load Current (FLC)	6.70-5.60 A
Voltage	240V 1Ph 50Hz
RPM	2900rpm
Max Flow	14m3/hr
Max Head	20m
Max Temperature	120 degrees C
Material	Cast Iron
Impeller Material	Cast Iron
