TPE 32-230/2 Series 1000 0.75kW Single Stage Single Head 2 Pole Variable Speed In Line 240v

Name: TPE 32-230/2 Series 1000 0.75kW Single Stage Single Head 2 Pole Variable Speed In Line 240v
Brand: Grundfos
SKU: 99114823
Price: 1997 GBP
Availability: InStock

SKU

99114823

MRRP £3,442.00 + VAT Our price £1,997.00 (+ VAT) Incl. VAT: £2,396.40

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Choose Flange Set Option

Choose Bellow Set Option

Choose Gasket Set Option

Qty

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

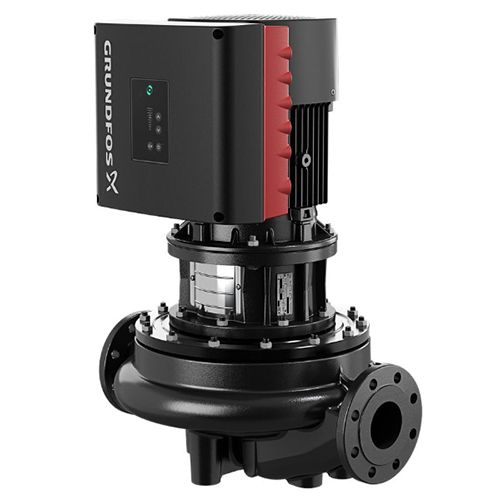

Grundfos TPE 1000 32-230/2 A F A BQQE Single Stage Single Head In-Line Pump with 2 Pole 240V 1Ph 50Hz, 0.75kW Motor and flanged pump connections.

The Grundfos TPE Series 1000 Cast Iron Pump Complete With 2 Poles Variable Speed Electric Motor

Single-stage centrifugal in-line single-head pump:

neck rings and impeller made of stainless steel
cataphoresis treatment
shell coupling
top-pull-out principle for easy maintenance
optimized hydraulics
in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
corrosion resistant maintenance-free mechanical shaft seal.
32mm flanged connection
Optional flange sets available, see accessories below for options.

IMAGE FOR ILLUSTRATION PURPOSES ONLY.

More Information
SKU	99114823
Manufacturer	Grundfos
Manufacturers Warranty	2 Years
GTIN	5712607036607
Weight	38.3 Kg
Dimensions	430mm (h) x 280mm (w) x 200mm (d)
Connection Type	32mm Flanged
Motor Size (kW/W)	0.75 kW
Full Load Current (FLC)	4.70-3.90 A
Voltage	240V 1Ph 50Hz
RPM	2855rpm
Max Flow	10m3/hr
Max Head	23m
Max Temperature	120 degrees C
Material	Cast Iron
Impeller Material	Stainless Steel
