TPE 50-430/2-S Series 2000 5.5kW Single Stage Single Head 2 Pole Variable Speed In Line 415v
SKU
99114665
MRRP
£9,504.00
+ VAT
Our price
£5,513.00
(+ VAT)
Incl. VAT: £6615.60
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
Hours
Mins
Secs
* Available where Guaranteed Stock Icon Appears Below
Grundfos TPE 2000 50-430/2-S A F A BQQE Single Stage Single Head In-Line Pump with 2 Pole 415V 3Ph 50Hz, 5.5kW Motor and flanged pump connections.
The Grundfos TPE Series 2000 Cast Iron Pump Complete With 2 Poles Variable Speed Electric Motor and Differential Pressure Sensor.
Single-stage centrifugal in-line single-head pump:
- neck rings and impeller made of cast iron
- cataphoresis treatment
- shell coupling
- top-pull-out principle for easy maintenance
- optimized hydraulics
- in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
- corrosion resistant maintenance-free mechanical shaft seal.
- 50mm flanged connections
- The pump is fitted with a differential pressure sensor

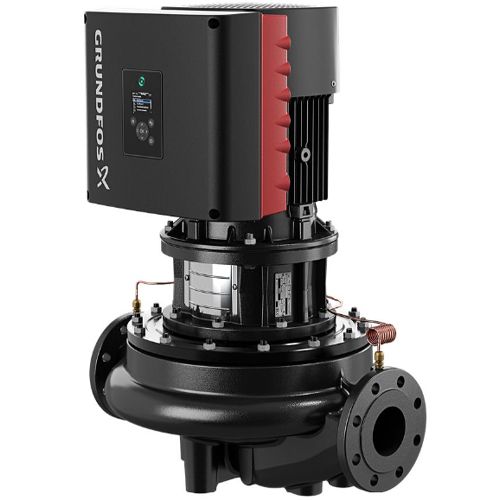

IMAGE FOR ILLUSTRATION PURPOSES ONLY.
SKU | 99114665 |
---|---|
Manufacturer | Grundfos |
Manufacturers Warranty | 2 Years |
GTIN | 5712607033576 |
Weight | 94.0 Kg |
Dimensions | 708mm (h) x 340mm (w) x 320mm (d) |
Connection Type | 50mm Flanged |
Motor Size (kW/W) | 5.5 kW |
Full Load Current (FLC) | 8.20 A |
Voltage | 415V 3Ph 50Hz |
RPM | 2920rpm |
Max Flow | 47m3/hr |
Max Head | 43m |
Max Temperature | 120 degrees C |
Material | Cast Iron |
Impeller Material | Cast Iron |
