TPE 80-270/4 Series 1000 7.5kW Single Stage Single Head 4 Pole Variable Speed In Line 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Grundfos TPE 1000 80-270/4 A F A BQQE Single Stage Single Head In-Line Pump with 4 Pole 415V 3Ph 50Hz, 7.5kW Motor and flanged pump connections.
The Grundfos TPE Series 1000 Cast Iron Pump Complete With 4 Poles Variable Speed Electric Motor
Single-stage centrifugal in-line single-head pump:
- neck rings and impeller made of cast iron
- cataphoresis treatment
- shell coupling
- top-pull-out principle for easy maintenance
- optimized hydraulics
- in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
- corrosion resistant maintenance-free mechanical shaft seal.
- 80mm flanged connection
- Optional flange sets available, see accessories below for options.

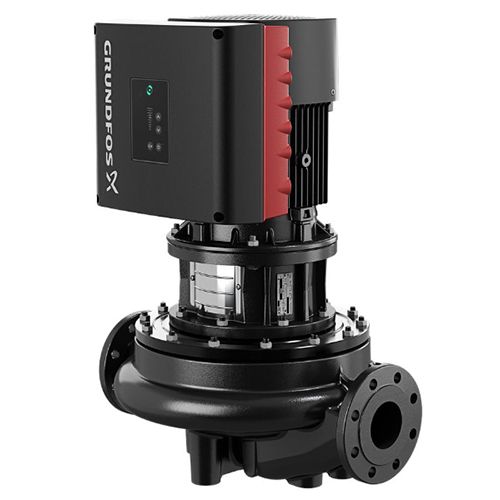

IMAGE FOR ILLUSTRATION PURPOSES ONLY.
| SKU | 99113701 |
|---|---|
| Manufacturer | Grundfos |
| Manufacturers Warranty | 2 Years |
| GTIN | 5712607014612 |
| Weight | 213.0 Kg |
| Dimensions | 802mm (h) x 620mm (w) x 469mm (d) |
| Connection Type | 80mm Flanged |
| Motor Size (kW/W) | 7.5 kW |
| Full Load Current (FLC) | 11.1 A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 1455rpm |
| Max Flow | 97m3/hr |
| Max Head | 27m |
| Max Temperature | 120 degrees C |
| Material | Cast Iron |
| Impeller Material | Cast Iron |
