TPE3 32-120 S Single Stage Single Head Stainless Steel Variable Speed In Line With DP+T Sensor 0.25kW 240V

Name: TPE3 32-120 S Single Stage Single Head Stainless Steel Variable Speed In Line With DP+T Sensor 0.25kW 240V
Brand: Grundfos
SKU: 98416354
Price: 3148 GBP
Availability: InStock

SKU

98416354

MRRP £5,426.00 + VAT Our price £3,148.00 (+ VAT) Incl. VAT: £3,777.60

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Grundfos TPE3 32-120-S A F I BQQE Single Stage Single Head Stainless Steel for Hot Water Service In-Line Pump with Variable Speed High Efficiency Motor and Built In DP+T Sensor 240V 1Ph 50Hz, 0.25kW Motor and flanged pump connections.

Single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter.

neck rings and impeller made of composite
The pump is of the top-pull-out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework.
The pump is fitted with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756.
The pump is fitted with a fan-cooled, permanent-magnet asynchronous motor. The motor efficiency is classified as IE5 in accordance with IEC 60034-30-2. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement.
The pump is fitted with a combined temperature- and differential pressure sensor.
corrosion resistant maintenance-free mechanical shaft seal.
32mm flanged connection

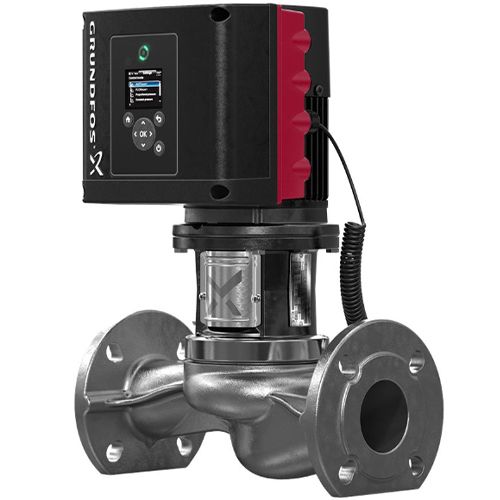

IMAGE FOR ILLUSTRATION PURPOSES ONLY.

More Information
SKU	98416354
Manufacturer	Grundfos
Manufacturers Warranty	2 Years
GTIN	5711494650606
Weight	29.9 Kg
Dimensions	439mm (h) x 220mm (w) x 146mm (d)
Connection Type	32mm Flanged
Motor Size (kW/W)	0.25 kW
Full Load Current (FLC)	1.75-1.50 A
Voltage	240V 1Ph 50Hz
RPM	3600rpm
Max Flow	16m3/hr
Max Head	12m
Max Temperature	120 degrees C
Material	Stainless Steel
Impeller Material	Composite
