TPE3 32-200-S A F A BQQE 0.75kW Single Stage Single Head Variable Speed In Line With DP+T Sensor 415v

SKU
99272206
MRRP £5,354.00 + VAT Our price £3,106.00 (+ VAT) Incl. VAT: £3727.20

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
01
Hours
43
Mins
38
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Grundfos TPE3 32-200-S A F A BQQE Single Stage Single Head Variable Speed In-Line Pump with built-in differential pressure and temperature transducer 415V 3Ph 50/60Hz, 0.75kW Motor and flanged pump connections.

Single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement.

The pump is fitted with a fan-cooled, permanent-magnet synchronous motor. The motor efficiency is classified as IE5 in accordance with IEC 60034-30-2.

TPE3 pumps have a built-in differential pressure and temperature transducer and are pre-programmed for close loop control.

  • neck rings and impeller made of composite
  • cataphoresis treatment
  • shell coupling
  • top-pull-out principle for easy maintenance
  • optimized hydraulics
  • in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
  • corrosion resistant maintenance-free mechanical shaft seal.
  • RP 32mm flanged Outlet

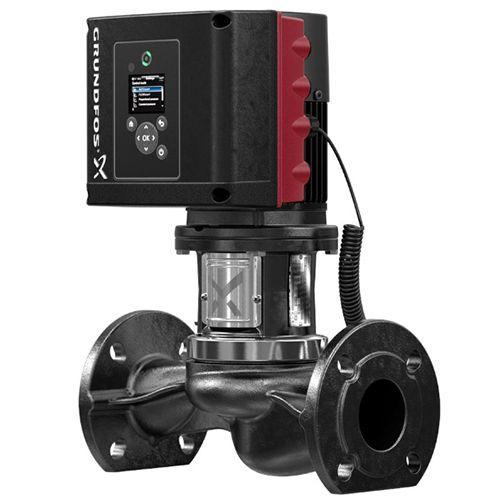

IMAGE FOR ILLUSTRATION PURPOSES ONLY.

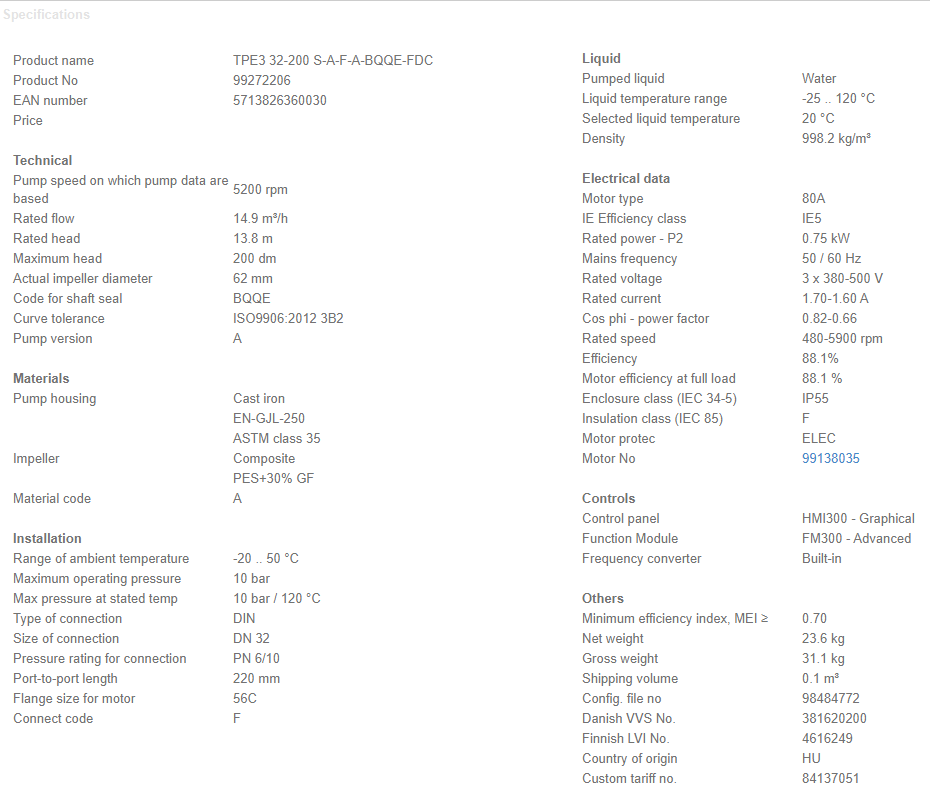

More Information
SKU 99272206
Manufacturer Grundfos
Manufacturers Warranty 2 Years
GTIN 5713826360030
Weight 24.5 Kg
Dimensions 479mm (h) x 220mm (w) x 146mm (d)
Connection Type 32mm Flanged
Motor Size (kW/W) 0.75 kW
Full Load Current (FLC) 1.60 A
Voltage 415V 3Ph 50Hz
RPM 5200rpm
Max Flow 23m3/hr
Max Head 20m
Max Temperature 120 degrees C
Material Cast Iron
Impeller Material Composite
