TPE3 40-120 S Single Stage Single Head Stainless Steel Variable Speed In Line With DP+T Sensor 0.37kW 240V
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Grundfos TPE3 40-120-S A F I BQQE Single Stage Single Head Stainless Steel for Hot Water Service In-Line Pump with Variable Speed High Efficiency Motor and Built In DP+T Sensor 240V 1Ph 50Hz, 0.37kW Motor and flanged pump connections.
Single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter.
- neck rings and impeller made of composite
- The pump is of the top-pull-out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework.
- The pump is fitted with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756.
- The pump is fitted with a fan-cooled, permanent-magnet asynchronous motor. The motor efficiency is classified as IE5 in accordance with IEC 60034-30-2. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement.
- The pump is fitted with a combined temperature- and differential pressure sensor.
- corrosion resistant maintenance-free mechanical shaft seal.
- 40mm flanged connection

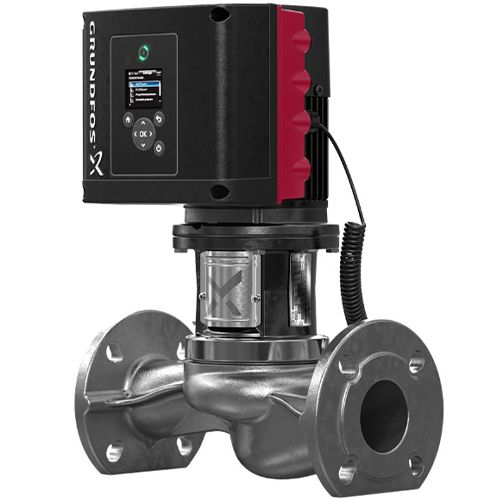

IMAGE FOR ILLUSTRATION PURPOSES ONLY.
| SKU | 98416505 |
|---|---|
| Manufacturer | Grundfos |
| Manufacturers Warranty | 2 Years |
| GTIN | 5711494652549 |
| Weight | 31.2 Kg |
| Dimensions | 442mm (h) x 250mm (w) x 154mm (d) |
| Connection Type | 40mm Flanged |
| Motor Size (kW/W) | 0.37 kW |
| Full Load Current (FLC) | 2.40-2.10 A |
| Voltage | 240V 1Ph 50Hz |
| RPM | 3390rpm |
| Max Flow | 22.5m3/hr |
| Max Head | 12m |
| Max Temperature | 120 degrees C |
| Material | Stainless Steel |
| Impeller Material | Composite |
