TPE3 50-200-S A F A BQQE 1.5kW Single Stage Single Head Variable Speed In Line With DP+T Sensor 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Grundfos TPE3 50-200-S A F A BQQE Single Stage Single Head Variable Speed In-Line Pump with built-in differential pressure and temperature transducer 415V 3Ph 50/60Hz, 1.5kW Motor and flanged pump connections.
Single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement.
The pump is fitted with a fan-cooled, permanent-magnet synchronous motor. The motor efficiency is classified as IE5 in accordance with IEC 60034-30-2.
TPE3 pumps have a built-in differential pressure and temperature transducer and are pre-programmed for close loop control.
- neck rings and impeller made of composite
- cataphoresis treatment
- shell coupling
- top-pull-out principle for easy maintenance
- optimized hydraulics
- in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
- corrosion resistant maintenance-free mechanical shaft seal.
- RP 50mm flanged Outlet

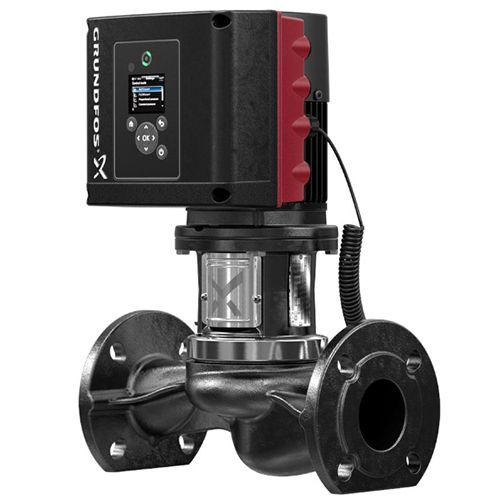

IMAGE FOR ILLUSTRATION PURPOSES ONLY.
| SKU | 99272218 |
|---|---|
| Manufacturer | Grundfos |
| Manufacturers Warranty | 2 Years |
| GTIN | 5713826360276 |
| Weight | 36.4 Kg |
| Dimensions | 509mm (h) x 280mm (w) x 166mm (d) |
| Connection Type | 50mm Flanged |
| Motor Size (kW/W) | 1.5 kW |
| Full Load Current (FLC) | 2.50 A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 4800rpm |
| Max Flow | 50m3/hr |
| Max Head | 20m |
| Max Temperature | 120 degrees C |
| Material | Cast Iron |
| Impeller Material | Composite |
