TPED 50-710/2-S Series 2000 15kW Single Stage Twin Head 2 Pole Variable Speed In Line 415v
SKU
96945769
MRRP
£29,252.00
+ VAT
Our price
£16,967.00
(+ VAT)
Incl. VAT: £20360.40
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
Hours
Mins
Secs
* Available where Guaranteed Stock Icon Appears Below
Grundfos TPED 2000 50-710/2-S A F A BQQE Single Stage Twin Head In-Line Pump with 2 Pole 415V 3Ph 50Hz, 15kW Motor and flanged pump connections.
The Grundfos TPED Series 2000 Cast Iron Pump Complete With 2 Poles Variable Speed Electric Motor and Differential Pressure Sensor.
Single-stage centrifugal in-line twin-head pump:
- neck rings and impeller made of cast iron
- cataphoresis treatment
- shell coupling
- top-pull-out principle for easy maintenance
- optimized hydraulics
- in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
- corrosion resistant maintenance-free mechanical shaft seal.
- 50mm flanged connections
- The pump is fitted with a differential pressure sensor

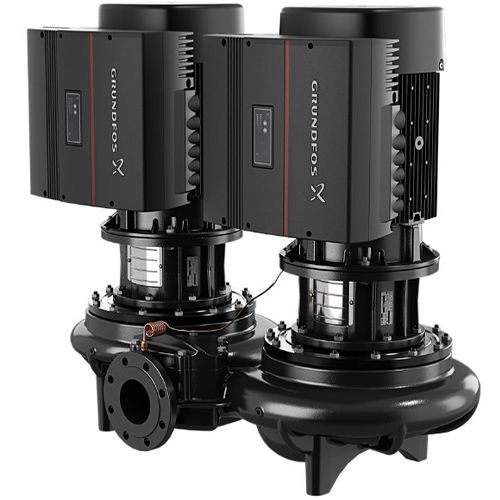

IMAGE FOR ILLUSTRATION PURPOSES ONLY.
SKU | 96945769 |
---|---|
Manufacturer | Grundfos |
Manufacturers Warranty | 2 Years |
GTIN | 5700314376703 |
Weight | 484.0 Kg |
Dimensions | 861mm (h) x 768mm (w) x 440mm (d) |
Connection Type | 50mm Flanged |
Motor Size (kW/W) | 15 kW |
Full Load Current (FLC) | 26.0 A |
Voltage | 415V 3Ph 50Hz |
RPM | 2945rpm |
Max Flow | 61m3/hr |
Max Head | 71m |
Max Temperature | 120 degrees C |
Material | Cast Iron |
Impeller Material | Cast Iron |
