Wilo Stratos MAXO 30/0,5-14 180 PN10 Single Head Circulating Pump 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Wilo Stratos MAXO 30/0,5-14 180 PN10 Single Head Circulating Pump 240v - 2164577
Premium smart-pump Wilo-Stratos MAXO
High-efficiency inline glandless pump with EC motor and electronic power adjustment. Can be used for cold water, heating water and water/glycol mixtures. Energy efficiency index (EEI) between ≤ 0.17 and ≤ 0.19 depending on pump type.
Control modes:
- Permanent, automatic performance adaptation to system requirements without setpoint specification Wilo Dynamic Adapt plus (factory setting). Up to 20% energy savings compared to dp-v control mode.
- Constant temperature
- Constant differential temperature
- Needs-based volume flow optimisation of the feeder pump through connectivity and communication between multiple pumps
- Constant volume flow
- Differential pressure control (dp-c) to a remote point in the pipe network
- Constant differential pressure
- Variable differential pressure with the option to set the nominal duty point
- Constant speed
- User-defined PID control
Functions:
- Heat quantity measurement
- Cooling quantity measurement
- Pump automatically deactivates when no flow is detected
- Switchover between heating and cooling mode (automatic, external or manual)
- Adjustable volume flow limiter using the Q-Limit function
- Operating modes of twin-head pumps: Efficiency-optimised parallel operation for dp-c and dp-v, main and standby operation
- Ability to save and restore configured pump settings
- Fault and warning messages shown in plain text with advice on resolving the issue
- Pump venting function for automatic venting of the rotor chamber
- Automatic setback operation
- Automatic deblocking function and integrated full motor protection
- Dry-running detection
Display:
- Control mode
- Setpoint
- Volume flow
- Temperature
- Power consumption
- Electric consumption
- Active influences (e.g. STOP, No-Flow Stop)
| SKU | 2164577 |
|---|---|
| Manufacturer | Wilo |
| Manufacturers Warranty | 2 Years |
| Weight | 8.6 Kg |

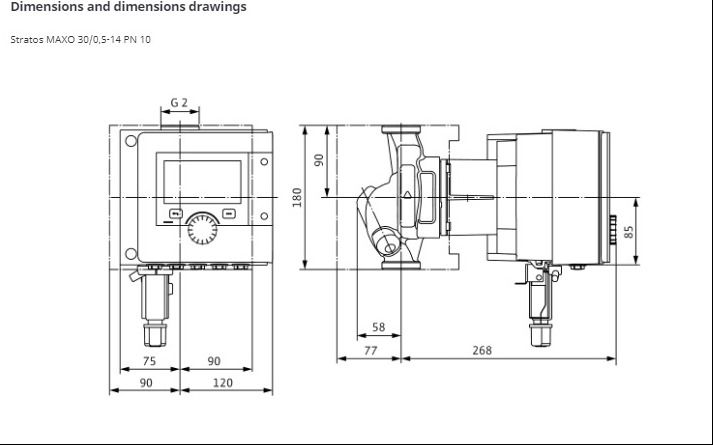

| Dimensions | 345mm (H) x 180mm (L) x 210mm (D) |
| Connection Type | 2 Inch BSP |
| Motor Size (kW/W) | 7-340watt |
| Voltage | 240V 1Ph 50Hz |

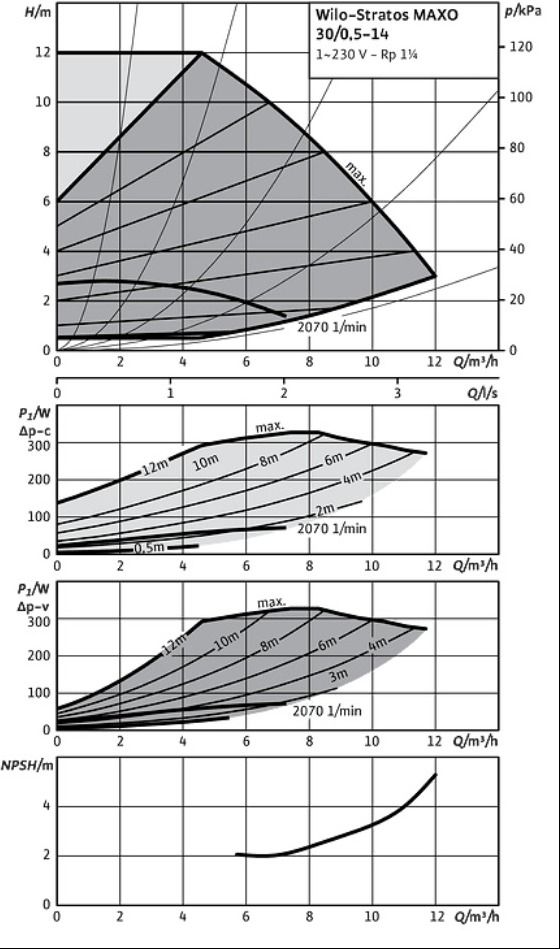

| Max Flow | 12m3/hr |
| Max Head | 12mtr |
| Max Temperature | 110oC |
| Material | Cast Iron |
| Impeller Material | PPS-GF40 |
