Wilo Stratos MAXO-D 65/0,5-16 340 PN6/10 Twin Head Circulating Pump 240V
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Wilo Stratos MAXO-D 65/0,5-16 340 PN6/10 Twin Head Circulating Pump 240V - 2164659
Premium smart-pump Wilo-Stratos MAXO-D
High-efficiency inline glandless twin-head pump with EC motor and electronic power adjustment. Can be used for cold water, heating water and water/glycol mixtures. Energy efficiency index (EEI) between ≤ 0.17 and ≤ 0.19 depending on pump type.
Control modes:
- Permanent, automatic performance adaptation to system requirements without setpoint specification Wilo Dynamic Adapt plus (factory setting). Up to 20% energy savings compared to dp-v control mode.
- Constant temperature
- Constant differential temperature
- Needs-based volume flow optimisation of the feeder pump through connectivity and communication between multiple pumps
- Constant volume flow
- Differential pressure control (dp-c) to a remote point in the pipe network
- Constant differential pressure
- Variable differential pressure with the option to set the nominal duty point
- Constant speed
- User-defined PID control
Functions:
- Heat quantity measurement
- Cooling quantity measurement
- Pump automatically deactivates when no flow is detected
- Switchover between heating and cooling mode (automatic, external or manual)
- Adjustable volume flow limiter using the Q-Limit function
- Operating modes of twin-head pumps: Efficiency-optimised parallel operation for dp-c and dp-v, main and standby operation
- Ability to save and restore configured pump settings
- Fault and warning messages shown in plain text with advice on resolving the issue
- Pump venting function for automatic venting of the rotor chamber
- Automatic setback operation
- Automatic deblocking function and integrated full motor protection
- Dry-running detection
Display:
- Control mode
- Setpoint
- Volume flow
- Temperature
- Power consumption
- Electric consumption
- Active influences (e.g. STOP, No-Flow Stop)
Version:
- 2 configurable analogue inputs: 0–10 V, 2–10 V, 0–20 mA, 4–20 mA and commercially available PT1000; +24 V DC power supply
- 2 configurable digital inputs (Ext. OFF, Ext. Min, Ext. Max, heating/cooling, manual override (uncoupled from building automation), operation lock (key lock and remote operation configuration protection))
- 2 configurable signal relays for operational and fault messages
- Slot for Wilo-CIF modules with interfaces for building automation BA (optional accessories: CIF modules Modbus RTU, Modbus TCP, BACnet MS/TP, BACnet IP, LON, PLR, CANopen)
- Wilo Net as a Wilo system bus for communication between Wilo products, e.g. Multi-Flow Adaptation; double pump operation and Wilo-Smart Gateway
- Integrated temperature sensor
- Automatic emergency operation with definable pump speed for exceptional circumstances, e.g. bus communication or sensor value malfunction
- Graphic colour display (4.3 inches) with one-button manual operation
- Use the Wilo-Assistant app to read and set operating data and –among other things– set up a commissioning protocol through the Bluetooth interface (no further accessories required)
- Integrated double pump management (double pumps are prewired) when using 2 single pumps as double pump unit (connection via Wilo Net)
- Cable break detection when using an analogue signal (in connection with 2–10 V or 4–20 mA)
- Outdoor installation with weather protection possible in accordance with the installation and operating instructions
- Pre-set date and time
Scope of delivery
- Pump
- 2x optimised Wilo-Connector, suitable for all sizes
- 4x threaded cable gland, M16 x 1.5
- Washers for flange screws M12 and M16 (for nominal connection diameters DN 32 to DN 65)
- 2x gaskets for threaded connection
- Concise Installation and operating instructions
Optional accessories:
- CIF module: Modbus TCP, Modbus RTU, BACnet IP, BACnet MS/TP, LON, PLR, CANopen
- PT 1000 (B) pipe contact sensor (for domestic hot water)
- PT 1000 (AA) sensor for installation in immersion well
- Differential pressure sensor
- Smart Gateway
| SKU | 2164659 |
|---|---|
| Manufacturer | Wilo |
| Manufacturers Warranty | 2 Years |
| Weight | 66.8 Kg |

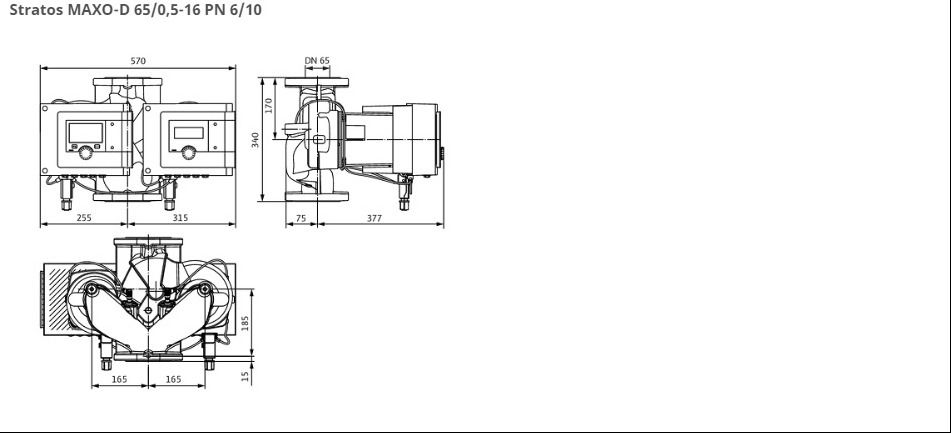

| Dimensions | 452mm x 340mm x 570mm |
| Connection Type | 65mm Flanged |
| Motor Size (kW/W) | 20-1440watt |
| Voltage | 240V 1Ph 50Hz |

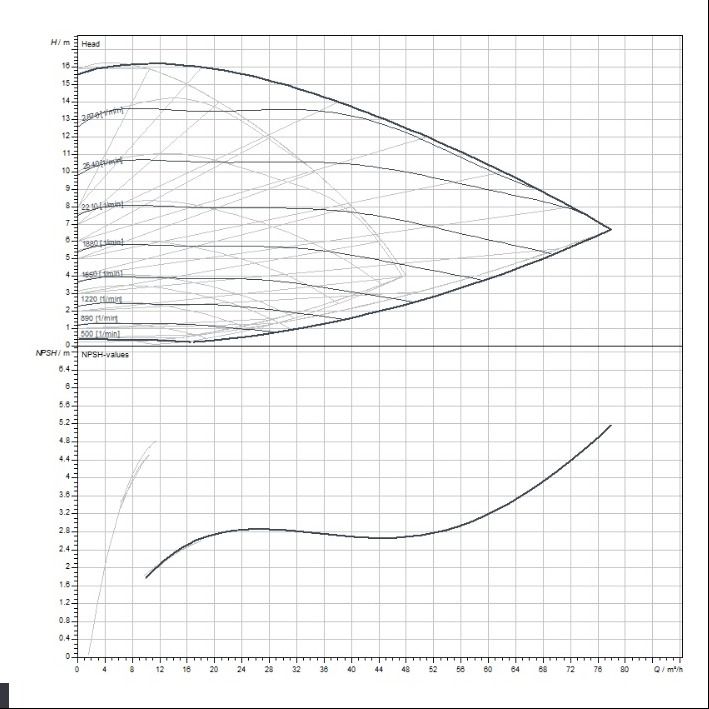

| Max Flow | 78m3/hr |
| Max Head | 15.9mtr |
| Max Temperature | 110oC |
| Material | Cast Iron |
| Impeller Material | PPS-GF40 |
