Wilo Yonos MAXO-D 50/0,5-16 340 PN6/PN10 Twin Head Circulating Pump 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
High-efficiency pump Wilo-Yonos MAXO-D, electronically controlled. Glandless twin-head pump, synchronous motor according to ECM technology and integrated power control for continuous differential pressure control. Can be used for all heating, ventilation and air-conditioning applications.
Each pump can be operated in individual operation (main/standby operation). For an automatic fault-actuated switchover, a corresponding switchgear must be provided onsite.
Standard-equipped with:

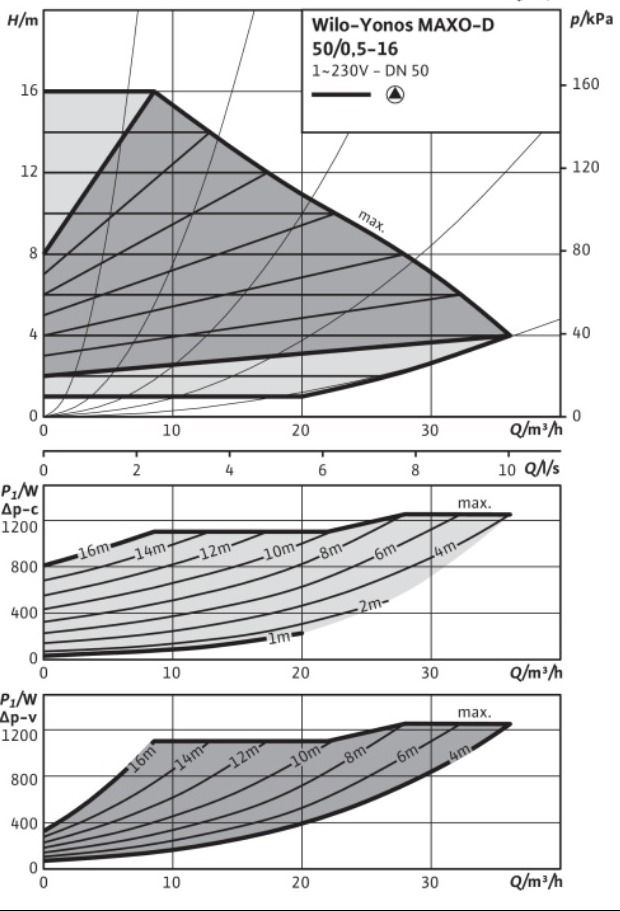

- Preselectable control modes for optimum load adjustment: Δp-c (differential pressure constant), Δp-v (differential pressure variable)
- 3 speed stages (n = constant)
- LED display for setting the setpoint and displaying error messages
- Electrical connection with the Wilo plug
- Fault lamp and contact for collective fault signal
For flange-end pumps - flange versions:
Standard version for pumps DN 32 to DN 65:
PN6/10 combination flange (PN 16 flange according to EN 1092-2) for PN6 and PN16 counter flanges
Standard version for DN 80/DN 100 pumps:
PN6 flange (designed for PN 16 according to EN 1092-2) for PN6 counter flange
| SKU | 2120669 |
|---|---|
| Manufacturer | Wilo |
| Manufacturers Warranty | 2 Years |
| Weight | 51.2 Kg |

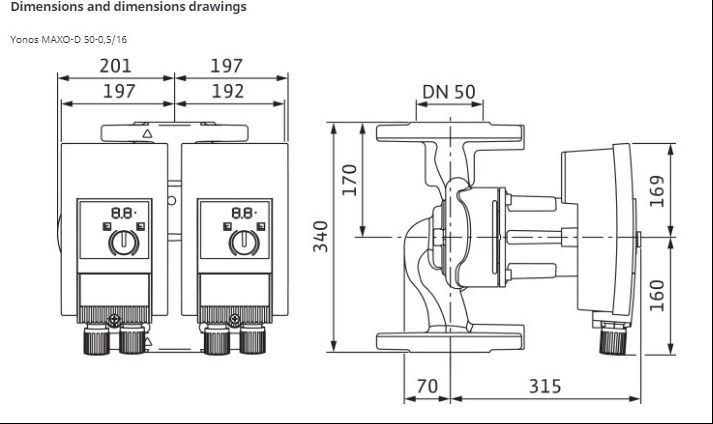

| Dimensions | 385mm (H) x 340mm (L) x 398mm (D) |
| Connection Type | 50mm Flanged |
| Motor Size (kW/W) | 40-1250watt |
| Full Load Current (FLC) | 5.5A Rated Current |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 35m3/hr |
| Max Head | 16mtr |
| Max Temperature | 110oC |
| Material | Cast Iron |
| Impeller Material | PPE-PS-GF30 |
