Wilo Yonos MAXO-Z 50/0,5-9 280 PN6/PN10 Single Head Circulating Pump 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Wilo Yonos MAXO-Z 50/0,5-9 280 PN6/PN10 Single Head Circulating Pump 240v - 2175544
High-efficiency pump Wilo-Yonos MAXO-Z Electronically Controlled
Glandless circulator, synchronous motor according to ECM technology and integrated power control for continuous differential pressure control. Can be used for all domestic hot water circulation systems in industry and building services.
Standard-equipped with:

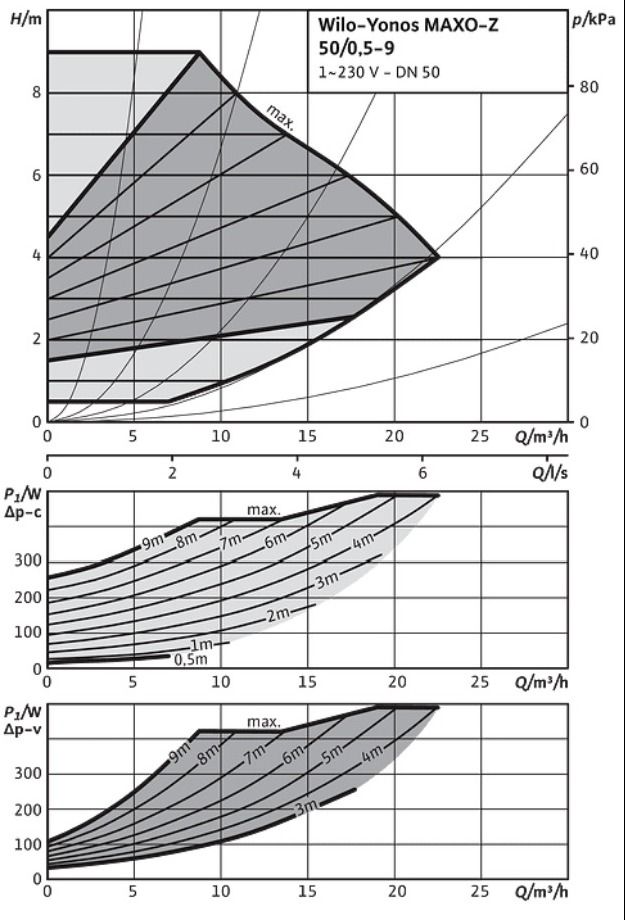

- Preselectable control modes for optimum load adjustment: Δp-c (constant differential pressure), Δp-v (variable differential pressure)

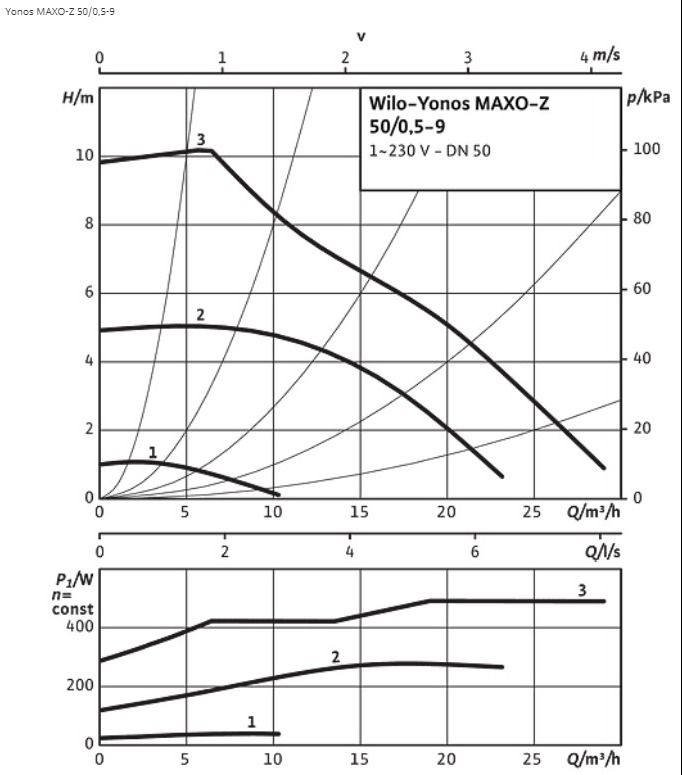

- 3 speed stages (n = constant)
- LED for setting the setpoint and displaying error messages
- Electrical connection with the Wilo plug
- Fault signal light and contact for collective fault signal
For flange-end pumps - flange versions:
- Standard version for DN 32 to DN 65 pumps: Combination flange PN 6/10 (flange PN 16 in accordance with EN 1092-2) for counter flanges PN 6 and PN 10
| SKU | 2175544 |
|---|---|
| Manufacturer | Wilo |
| Manufacturers Warranty | 2 Years |
| Weight | 19.8 Kg |

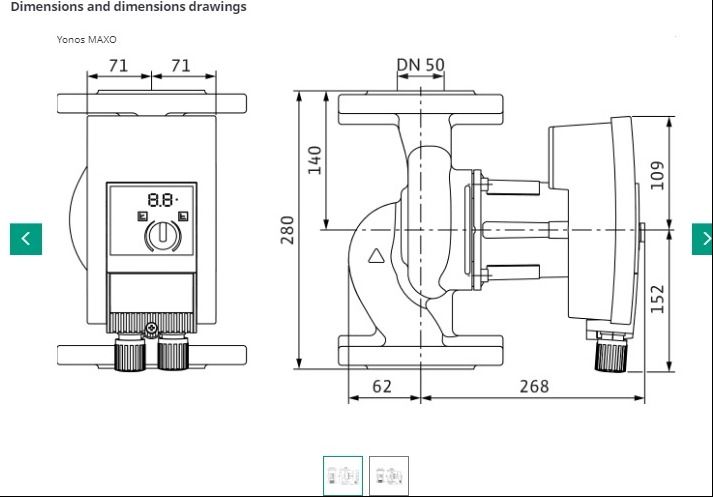

| Dimensions | 330mm (H) x 280mm (L) x 142mm (D) |
| Connection Type | 50mm Flanged |
| Motor Size (kW/W) | 15-490watt |
| Full Load Current (FLC) | 2.15 Rated Current |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 29m3/hr |
| Max Head | 10.2mtr |
| Max Temperature | 110oC |
| Material | Bronze |
| Impeller Material | PPS-GF40 |
